Isenberg Faucets K.1360AG

Isenberg Klassiker Ziel 17" Single Hole Army Green Stainless Steel Pull-Down Kitchen Faucet With Dual Function Sprayer

Isenberg Klassiker Ziel 17" Single Hole Army Green Stainless Steel Pull-Down Kitchen Faucet With Dual Function Sprayer

Regular price $675.00
Regular price Sale price $675.00
Sale Sold out

Kitchen Soap / Lotion Dispenser

-- Please Select --

No, Thank You

Dishwasher Air Gap

-- Please Select --

No, Thank You

✔ Free Shipping on Orders Over $300
✔ Same-Day Order Processing

Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Comprising a dual-function sprayer, the Ziel™ is the embodiment of minimalism in your kitchen. Its pull-out sprayer lets you reach into the smallest of spaces, making cleaning and washing a breeze.

Ziel’s solid stainless-steel body beautifully elicits its beauty and highlights its fine contours, making it the center of attraction in your kitchen. Ziel™ lends that simplistic touch to your kitchen yet uplifts it with its utter grace and high usability

Isenberg kitchen faucets are constructed using premium quality 316 stainless steel. Stainless steel kitchen faucets are easy to use because both volume and temperature can be controlled via a single lever handle.

What's Included

  • Stainless Steel Pull-Down Kitchen Faucet
  • Dual Function Sprayer

Not Included

  • Kitchen Soap / Lotion Dispenser
  • Dishwasher Air Gap

Features

  • Stainless Steel Construction
  • Stainless Steel Dual Function Sprayer
  • Single Hole Installation
  • Long Reach Sprayer
  • 360° Swivel Spout
  • 18 inches Pull-Out Sprayer Reach
  • Single Lever allows both volume and temperature control
  • Compatible With K.A100 Kitchen Soap / Lotion Dispenser (Sold Separately)
  • Compatible With K.B400 Dishwasher Air Gap (Sold Separately)
  • Easy to Use
  • Uses luminous thin-film ceramic-based finishes that are more eco-friendly than typical chemical chrome and nickel finishes.
  • Only the Finest Component - uses only the finest stainless steel components to machine and manufacture our striking plumbing fixtures.
  • Zero Drip Technology
  • Legislation Compliance
  • ADA Compliance
  • WaterSense Labeled
  • ASME A112.18.1/CSA B125.1 Standard

Pull-Out Hose: Pull-down kitchen faucets made by Isenberg Faucets have a approximately 18 Inches of pull out hose reach, providing the ability to clean easily around the sink.

Sprayer: The sprayer is constructed of stainless steel and features dual spray functions.

ADA Compliance: All single-handle kitchen faucets from Isenberg Faucets are ADA Compliant.

Deck Hole Size: All single-hole kitchen faucets from Isenberg Faucets fit into the universal deck hole size of 1 3/8″.

Counter Depth: This faucet can be installed on a countertop up to 3.0 cm thick.

Specifications

Installation Type Deck Mounted
Style Contemporary / Modern
Material 316 Stainless Steel
Handle Style Lever
Flow Rate @ 60 PSI 1.8 GPM
Faucet Finish Army Green
Faucet Type Standard Faucet
Weight 10 lbs
Spout Height 9.5"
Spout Reach 9.25"
Spout Swivel 360°
Faucet Height 17.4"
Deck Hole Size 1.38"
Supply Hose Connection 3/8"
Supply Hose Length 16"
Spray Setting Dual Function
Spray Direction Down
Number of Handles 1
Installation Holes Required 1
Counter Depth 3.0 cm
Drip Free Yes
WaterSense Labeled Yes
ADA Compliance Yes
Cartridge Info Kerox K-35A

Operating Specifications

WATER TEMPERATURE

This product is to be used with water at a temperature range of 40°F - 120°F ONLY!

WATER PRESSURE

This product is to be used with a water pressure range of 15 PSI to 80 PSI ONLY If the water pressure is greater than 80 PSI install a pressure-reducing valve (PRV)

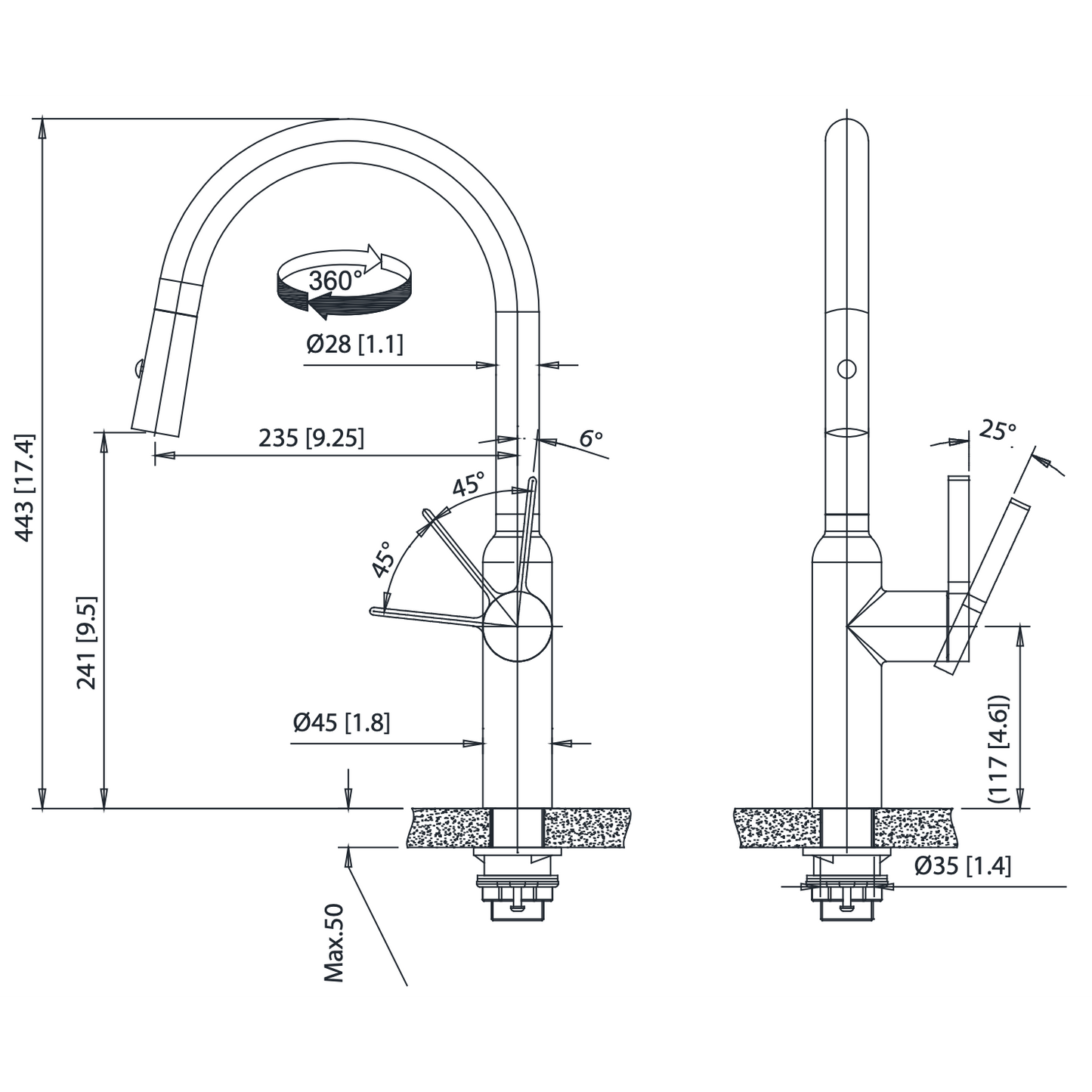

Technical Drawings

Warranty

Limited Warranty Within The United States & Canada

Isenberg Bath Corp. (“Isenberg”) products have been manufactured under the highest standards of quality and workmanship.

Isenberg warrants to the original consumer purchaser for as long as the original consumer purchaser owns their home (the “Warranty Period” for homeowners), that the Isenberg product that he/she has purchased will be defect-free during normal use and all parts and finishes of this product will be free from defects in material and manufacturing workmanship. All other purchasers (including purchasers for industrial, commercial, and business use) are warranted for a period of 2 years from the original date of purchase (the “Warranty Period” for non-homeowners).

If the product should ever develop a defect during the Warranty Period, Isenberg will provide the parts necessary to put the product back in good working condition FREE OF CHARGE, under normal installation, use, and service.

This warranty is subject to the limitations of liability noted below.

Limitations Liability

This warranty is applicable only to Isenberg products purchased after 1st January 2011 and shall be effective from the date of purchase as shown on the purchaser’s receipt. It applies only to Isenberg products purchased from Isenberg directly or from an Isenberg authorized dealer and installed in the United States or Canada. This warranty is non-transferable.

The Warranty Period for drain assemblies, bathroom hoses, hand-helds, kitchen hand sprays, and kitchen hoses shall be limited to a period of 1 year from the original date of purchase.

This warranty is extensive in that it covers the replacement of all defective parts and finishes, but these are the only two things that are covered. Damage due to installation error, product abuse, product misuse, or use of cleaners containing abrasives, alcohol, or other organic solvents, whether performed by a contractor, service company, or you, are excluded from this warranty.

Further, this warranty will not apply if you do not use the product in its entirety. If any part (including but not limited to a cartridge, hose, handle, o-ring, aerator, flow-limiting restrict-or, etc.), is not installed, removed, or replaced by a non-genuine Isenberg part, this warranty will be voided.

Your sole and exclusive remedy, and Isenberg’s sole obligation, in case of a defective part or finish is to have Isenberg, at Isenberg’s sole option, repair or replace the defective part or finish. By way of example but not limitation, the following costs and expenses are not covered by this warranty: (i) labor costs for the removal, installation, re-installation, finishing or refinishing of the product, or defective part (or of building materials which must be removed, installed, reinstalled, finished or refinished in order to repair or replace the defective product or part); (ii) shipping and freight expenses required to return the product to Isenberg. Repaired or replaced parts are individually warranted only under the same terms and for the remaining balance of the warranty period applicable to that part(s) which is/are repaired or replaced.

IN NO EVENT, WILL ISENBERG BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES INCLUDING, BUT NOT LIMITED TO, LABOR, REMOVAL, RE-INSTALLATION, REFINISHING, LOSS OF USE OF THE PRODUCT, LOSS OF PROFITS, LOSS OF REVENUE, LOST GOODWILL, CLAIMS OF EMOTIONAL DISTRESS, OR CLAIMS OF WARRANTY HOLDERS’ CUSTOMERS, WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT LIABILITY OR NEGLIGENCE) OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. EVEN IF THIS WARRANTY IS DEEMED TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL ISENBERG’S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT WARRANTED HEREUNDER.

THIS WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSLY SET FORTH HEREIN, WHETHER EXPRESS OR IMPLIED, BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES MAY NONETHELESS EXIST BY OPERATION OF LAW, ANY SUCH WARRANTIES ARE LIMITED TO THE DURATION PROVIDED BY THAT LAW. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Compliance with Local Codes

Isenberg makes no representations that its products or its installation instructions comply with any or all local building or plumbing codes. It is your responsibility to determine local code compliance and correct usage. Isenberg strongly recommends using a licensed and insured plumber to install or service your Isenberg product.

Warranty Claims Contact Information

You may make a warranty claim or order replacement parts by calling Isenberg Bath’s Corporate office at +1-888-342-2284, or by writing to Isenberg Bath Corporation, P O BOX 630283, Irving TX 75063. Proof of purchase (original sales receipt) must accompany all warranty claims. To receive assistance or service under this warranty, you will be asked to provide a description of the problem, the model number of the product, your contact information, and the date of purchase. Isenberg may, at its option, also request that you, at your expense, mail the defective part or product to Isenberg for inspection.

Downloads

Frequently Asked Questions

What cleaning products can cause damage to the finish?



Isenberg products should only be cleaned with water or specialized plumbing fixture cleaning liquids such as "STAINLESS STEEL & CHROME CLEANER WITH DEGREASER". Any other substances such as acetone, alcohol, acid, soaps, other household cleaning liquids should not be used. Isenberg recommends a microfiber cloth should be used to wipe the product to prevent and scratching.

What is the best way to clean and care for an Isenberg product?



Isenberg products should only be cleaned with water or specialized plumbing fixture cleaning liquids such as "STAINLESS STEEL & CHROME CLEANER WITH DEGREASER". Any other substances such as acetone, alcohol, acid, soaps, other household cleaning liquids should not be used. Isenberg recommends a microfiber cloth should be used to wipe the product to prevent and scratching.

What should I do if my Isenberg product drips?



Isenberg carries a comprehensive range of spare parts to service its fleet of fixtures in the field. Please contact us to describe your problem and we will resolve it for you. Please take a video or a photo of the product in question and keep ready proof of purchase.

Do I need any special tools to install any Isenberg product?



Isenberg products come with standard North American fittings & can be installed with standard tools available at most plumbing stores or hardware stores. No special tools are required for installation.

Do Isenberg products come with standard fittings for install in North America?



Isenberg products are fully certified for sale and installation within the USA. All fittings, threads, hoses etc on ALL Isenberg products are standardized to meet North American standards.

Do I need to register my Isenberg fixture for the warranty to be valid?



Isenberg’s products do not need to be explicitly registered with the company. Our warranty is valid as long as you are the original purchaser of the product and can provide proof of purchase from an authorized dealer.
