ASKO 30-Series 24" Panel Ready Stainless Steel Finish Built-In Dishwasher With XXL Tub
ASKO 30-Series 24" Panel Ready Stainless Steel Finish Built-In Dishwasher With XXL Tub
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
With our XXL dishwasher are there no longer any issues to get those large, tricky items cleaned. In addition with our different run modes such as Eco, Night, Speed and Intensive mode you will get the perfect result every time.
What's Included
- Top Cutlery Tray

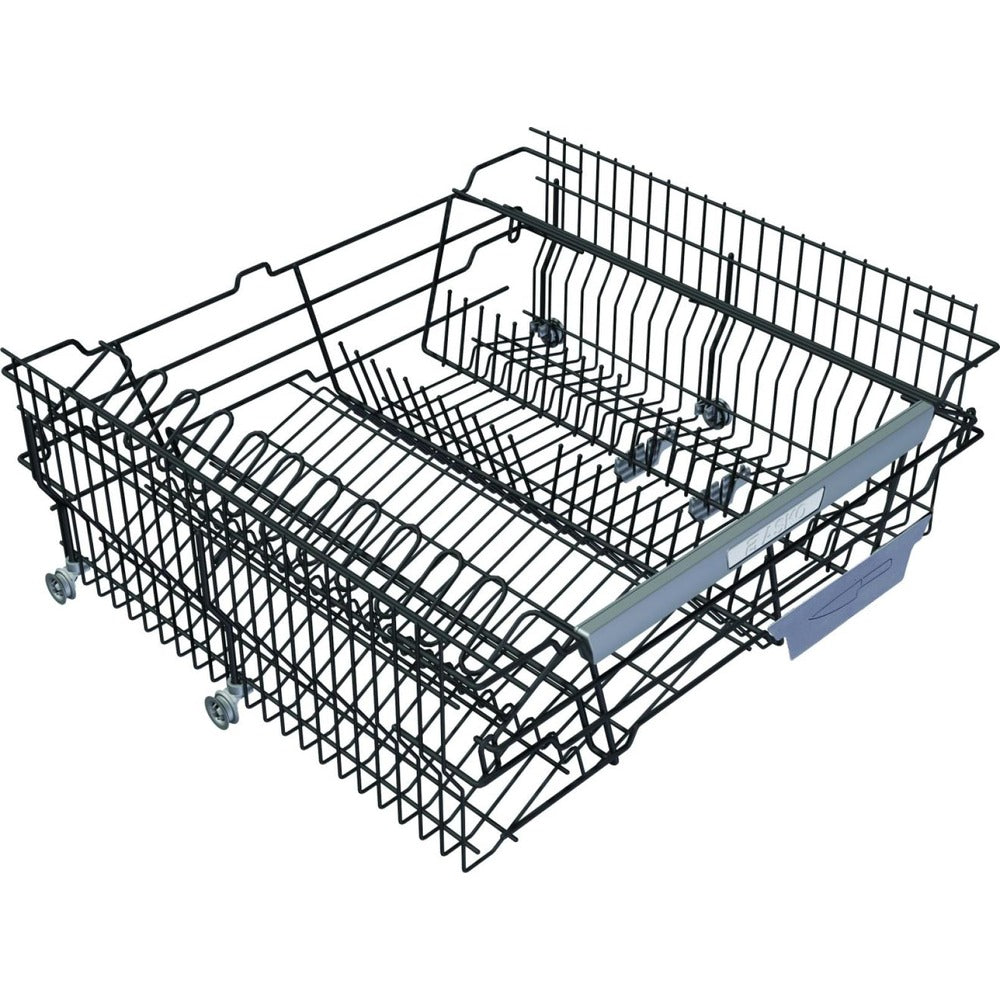

- Upper Rack
- Upper Basket
- Middle Basket
- Lower Rack
- XXL Tub
- Dishwasher Assembly
Not Included
- Design Panel
Features
- Energy Star Most Efficient
- 9 Spray Zones including 2 Power Zones™
- Aqua Safe™
- Super Cleaning System+™
- Turbo Drying™
- Jet Spray™ and Wide Spray™
- TouchProof™ Coating
- Sabbath Mode
- XL Tub - ADA Compatible
- Premium Racks with Top Tray
- Height adjustable top tray
- Premium upper rack
- Premium lower rack
- Cutlery basket
- Exterior float - detects water leakage on the base
- Stand by water protection
- Anti-block drain pump
- Hidden heater
- SCS+ - Super Cleaning System+™
Specifications
| Model | DFI663XXL |
| Vital Parts Material | 8 Steel™ Construction/ Stainless Steel (Welded stainless steel container) |
| Number of Spray Arm | 3 |
| Number of Placement Settings | 16 |
| Number of Racks | 3 |
| Number of Programs | 11 |
| Number of Options | 7 |
| Top Tray | Easy height adjustment; With rack for knives and utensils; With rack for bowls and cups; With telescopic rails; Handle; Removable |
| Upper Basket Type | Premium |
| Type of Display | LCD Display |
| Time Remaining Indicator | Yes |
| Cleaning Systems | Jet Spray™, Wide Spray™, Cutlery Spray™, Aqua Level™ Sensor, Stainless Steel Spray Arms, Super Cleaning System™ |
| Programs | Rinse and hold program, Upper half, Sanitize, Lower half, Standard, Crystal glass, Time program, ECO wash, Self-cleaning, Light wash, Plastic wash |
| Options and Modes | Extra dry, Green mode, Speed mode, Night mode, Intensive mode, Super Rinse™ |
| Water Connection | Hot and Cold |
| Max Temperature | 140 °F |
| Noise Level | 42 dBA |
| Plug Type | USA |
| Wattage | 1300w |
| Voltage | 120V/60hz |
| Amperage | 15 AMP |
| Product Dimensions | W 24" x H 32-11/16" x D 22" |
| Product Weight | 95.9 lb |
| Certification | ADA Compliant & ENERGY STAR® |
Technical Drawings & Dimensions
Warranty
Limited Warranty - Residential Appliances
This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. Service must be provided by an authorized ASKO service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This Limited Warranty is valid only when the ASKO Product is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.
This warranty only applies to the original purchaser and is non-transferable.
Residential ASKO Products Used Exclusively for Household/Personal Purposes:
Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must be filed with ASKO within two (2) years from the date of purchase. Service will be provided during normal business hours. ASKO Dishwashers are eligible under the 2024 5-Year Warranty Promotion and must be registered via the us.asko.com website.
Residential ASKO Products Not Used Exclusively for Household/Personal Purposes or used Commercially or used in Marine, Mobile or Aeronautical Applications:
One (1) Year Limited Warranty – Any warranty service claims for ASKO Products not used exclusively for household and personal use, or used commercially or used in marine, mobile, or aeronautical applications must be filed with ASKO within one (1) year from date of purchase. Service will be provided during normal business hours.
Click to see All Warranty Details
Items excluded from warranty
This limited warranty does not cover:
- Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent with published user or operator instructions and/or installation instructions.
- Service calls to correct the installation of the ASKO Product, to instruct you on how to use the ASKO Product, to replace or repair house fuses, or to correct house wiring or plumbing.
- Consumable items and parts, such as filters.
- Damage resulting from accident, alteration, misuse, abuse, negligence, fire, flood, natural disasters, improper use, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by ASKO, as well as any attempted repair by other than authorized ASKO service companies.
- Cosmetic damage, including scratches, dents, chips or other damage to the finish of the ASKO Product, unless such damage results from defects in materials or workmanship and is reported to ASKO within 5 days from date of purchase.
- Pickup and delivery. The ASKO Product is intended to be repaired in your home.
- Repairs to parts or systems resulting from unauthorized modifications made to the ASKO Product.
- Expenses for travel and transportation for product service if the ASKO Product is located in a remote area where service by an authorized ASKO service company is not available.
- The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location or is not installed in accordance with ASKO’s published installation instructions.
- Replacement parts or repair labor on ASKO Products with original model/serial numbers that have been removed, altered or cannot be easily determined.
Disclaimer
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow exclusion or limitations regarding warranty rights. This Limited Warranty gives you specific legal rights and you may have other rights that vary from jurisdiction to jurisdiction. Attempted repair by any person other than an authorized ASKO service company will void this Limited Warranty.
Limitation of Liability
IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR SPECIAL DAMAGES. IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the exclusion or limitation of incidental, consequential or other damages, so these limitations and exclusions may not apply to you. This Limited Warranty gives you specific legal rights. You also may have other rights that vary from jurisdiction to jurisdiction.
Documents & Files
Videos
