Bertazzoni 36" 19.6 Cu.Ft. Stainless Steel Built-In Bottom Mount Refrigerator With Ice Maker and Left Swing Door
Bertazzoni 36" 19.6 Cu.Ft. Stainless Steel Built-In Bottom Mount Refrigerator With Ice Maker and Left Swing Door
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Bertazzoni built-in refrigerators are designed, engineered and made in Italy with the highest grade materials and components. The proprietary ‘lift & swing’ door hinge system makes them the ideal choice for true flush installation as a single unit or side-by-side. Using one of the available handle kits in Professional, Master and Heritage Series style, these refrigerators integrate seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen.
These built-in refrigerators are built to last, employing metal and glass inside and out for better temperature management. The lateral airflow system, with dual compressor and evaporator for refrigerator and freezer, reduces cold air loss when opening doors and allows for category-leading interior depth. The internal configuration is designed for maximum flexibility, with 15 cubic feet of refrigerator volume and 4.6 cubic feet of FlexMode volume. The FlexMode Refrigerator-Freezer allows to switch the bottom compartment between freezer, fresco and refrigerator with one touch. Interior LED lighting on top and sides provide bright interior illumination on all levels with minimal energy consumption. Integrated water filter connected to water line ensures regular production of clean ice cubes of customizable size. Replacement water filters are available.
Using one of the 3 available handle kits in Professional, Master and Heritage Series style, this refrigerator integrates seamlessly with all other Bertazzoni appliances into style-harmonized suites for a true, high-performing kitchen.
This product is covered by a 2 years parts and labor warranty and 5 years warranty for the entire sealed system.

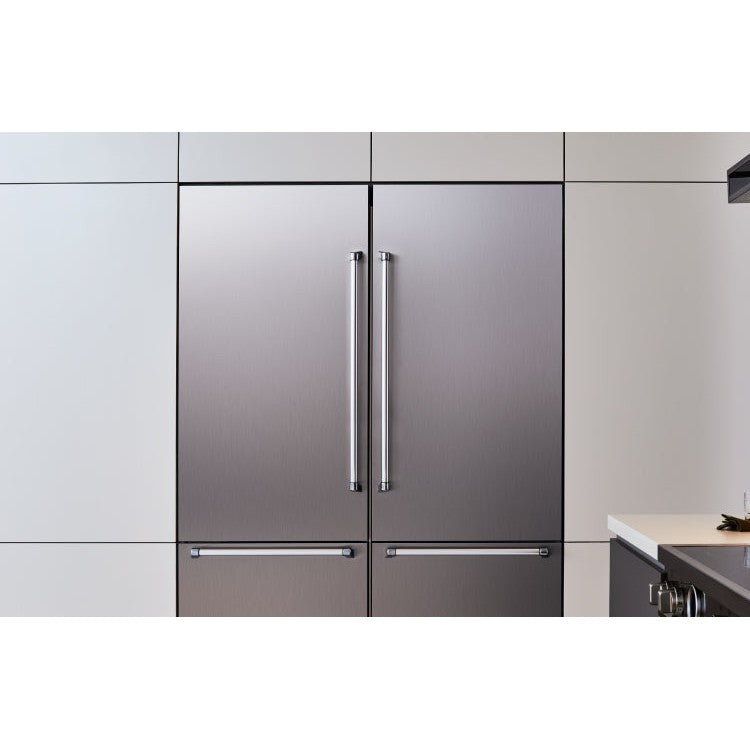

Note: Images shown with Handle Kits installed. Handle Kits are sold separately and available in Professional, Master or Heritage Series.
What's Included
- Refrigerator
Features
- Available with left or right swing door.
-
Built to last
- All metal and glass construction inside and out for longer durability and better temperature management
- Perfect illumination LED surround lighting
- Full-clad stainless steel door with proprietary hinge solution developed long term door alignment and balance
-
Optimized for continuing freshness
- Dual variable-speed compressors and dual evaporators
- Lateral airflow design ensures better temperature control by reducing cold air loss when opening doors
- Automatic ice-maker with filter and custom ice-cube size selection
- Super-freeze mode option for 20% faster freezing cycle of fresh food
-
True flush installation
- Both stainless and panel-ready models install flush with any cabinet type
- Seamless side-by-side installation kit to create personalized refrigeration solutions
- Proprietary "lift and swing" hinges require minimal clearance to nearby cabinetry for opening and closing doors
Specifications
| Item Number | REF36BMBIXLT |
| Size | 36 in |
| Cooling System | Frost Free |
| User Interface | TFT Touch & Scroll Interface |
| Display Functions | Bottle Cooler, Ice Maker, Ice Cube Size Setting, Super Ice, Water Filter Replacement Reminder, Flex Mode, Vacation Mode, Shopping Mode, Sabbath Mode |
| Lighting | LED Side & Top Rail Illumination |
| Door Ajar Alarm | Yes |
| Door Finishing | Stainless Steel |
| Cabinet Finishing | White Metal |
| Refrigerator Net Capacity | 15 cu.ft³ |
| Refrigerator Shelves | 2 Height-Adjustable + 1 Stationary |
| Refrigerator Drawers | 2 Soft-close Metal Drawers |
| Door Storage | 3 Height-Adjustable Bins |
| Freezer Net Capacity | 4.6 cu.ft³ |
| Freezer Drawers | 2 FlexMode |
| Automatic Ice Maker | yes |
| Ice Production Capacity | 3 lbs / 24 hr |
| Water Filter | yes |
| Water Supply Pressure | 8-75 PSI |
| Sound Rating | 41 dbA |
| Certification | ETL, Energy Star |
| DOE Compliant | yes |
Technical Specifications
| Electrical Supply | 115 V - 60 Hz - 3 A |
| Power Rating |
275 W |
| Power Connection | NEMA 5-15P with 98'' Power Cord |
| Energy Consumption | 572.0 kwh/y |
Technical Dimensions

Documents & Files
- Product Catalogue
- Project Reference Book
-
Specifications Sheet
-
User Manual
-
Installation Manual
-
Installation Drawing
-
Bertazzoni Built-In Columns Design Guide
- Energy Guide
Warranty
![]() |
Limited Two-year Warranty, Limited Five-year Parts and Labor Warranty on Sealed System and 30 Day Cosmetic Warranty. |
Limited Two-year Warranty
The Warranty coverage provided by Bertazzoni SpA (“Bertazzoni”) in this statement applies exclusively to the original Bertazzoni appliance (“Product”) sold to the consumer (“Purchaser”) by an authorized Bertazzoni dealer/distributor/retailer, purchased and installed in the United States, District of Columbia, or Canada which has always remained within the country of original purchase (United States, District of Columbia, or Canada).
Warranty coverage is activated on the date of original retail purchase of the Product and has a duration of two(2) years.
Limited Five-year parts and Labor Warranty on sealed system
After year two(2) through year five(5) from original purchase date, Bertazzoni warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the sealed system. The “Sealed System” means only the compressor, condenser, evaporator, drier and all connecting tubing.
Warranty coverage is non-transferrable.
In the event of parts replacement or entire product replacement, the replacement Product (or parts) shall assume the remaining original Warranty activated with original retail purchase document. This Warranty shall not be extended with respect to such replacement.
Bertazzoni SpA will repair or replace any component/part which fails or proves defective due to materials and/or workmanship within 2 years from the date of original retail purchase and under conditions of normal residential, non-commercial use.
Repair or replacement will be free of charge, including labor at standard rates and shipping expenses. Purchaser is responsible for making the Product reasonably accessible for service. Repair service must be performed by a Bertazzoni Authorized Service company during normal working hours. Labor performed at overtime or premium rates shall not be covered by Warranty.
IMPORTANT: retain proof of original purchase to establish warranty period.
Bertazzoni’s liability on any claim of any kind, with respect to the goods and/or services provided, shall in no event exceed the value of the goods or service or part thereof which gives origin to the claim.
30 Day Cosmetic warranty
Inspection of the product must be made by Purchaser at time of delivery.
Bertazzoni warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from date of original retail purchase of the Product.
This coverage includes paint blemishes, chips and macroscopic finish defects.
