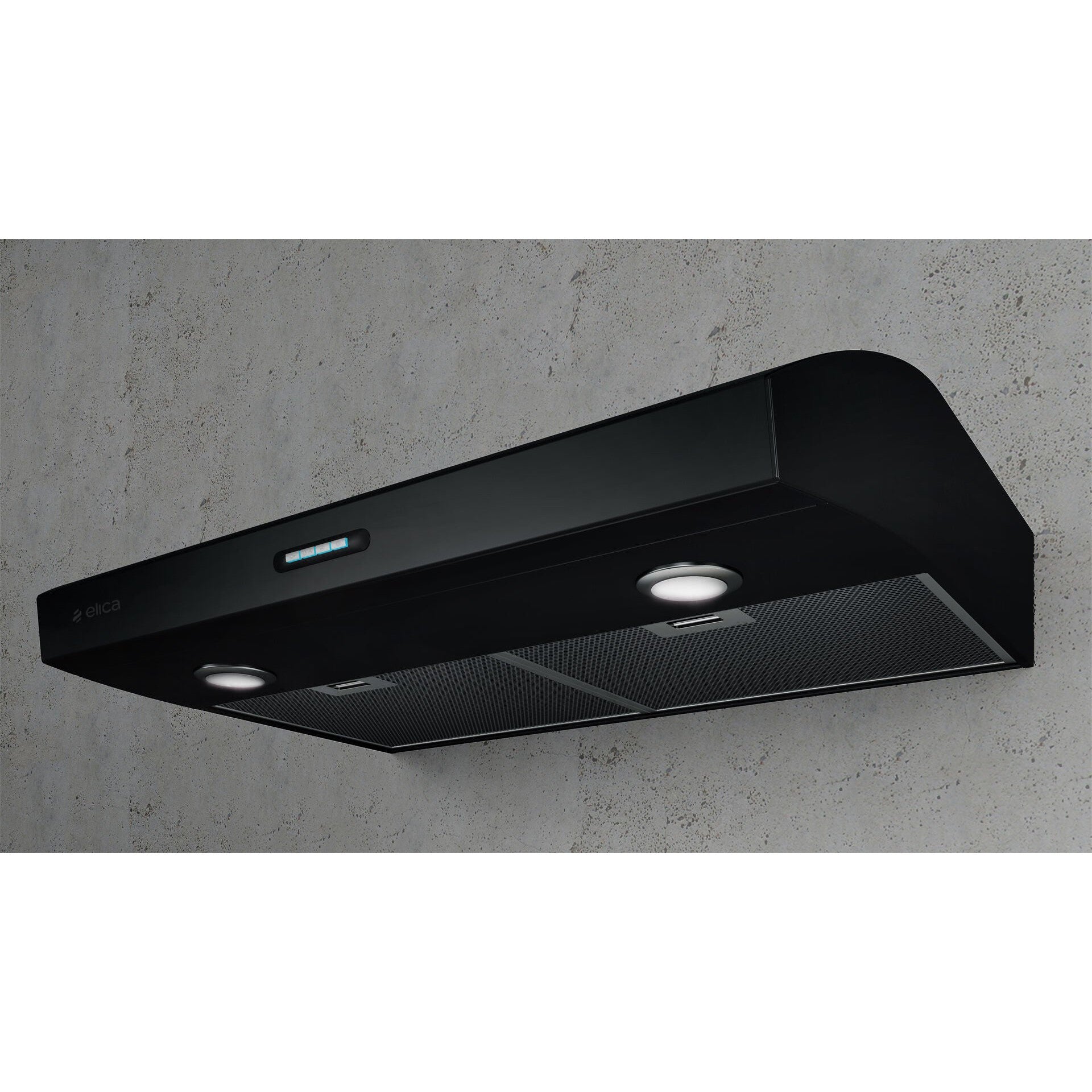

Elica Allasio 30" Black 3-Speed Electronic Push Button Ducted Undercabinet Range Hood With Blue Illumination Controls & LED Lights
Elica Allasio 30" Black 3-Speed Electronic Push Button Ducted Undercabinet Range Hood With Blue Illumination Controls & LED Lights
Optional Accessories
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The slim Allasio with 4 3/4" height, presents an ideal solution for spaces where under-cabinet room is at a premium, offering both functionality and style.
Allasio comes equipped with a 300 CFM internal blower, providing sufficient ventilating power for most kitchens. The attractive backlit push-button controls illuminate an elegant blue glow when activated and allow the user to manage blower speeds and dual LED lamps. Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. The contemporary Black finish complements other appliances and most cabinetry. Allasio is designed for standard ducted installation and can be installed as a recirculating system using the Recirculating Kit, available as an accessory.
What's Included
- Hood Canopy Assembly with Round Metal Transition installed
- Rectangular Metal Transition with Back draft dampers
- Care & Use / Installation Instructions
- (2) Filters
- Fitting Screws
Not Included (Sold Separately)
- Recirculating Kit
- Back Draft Damper - 7" Round
- Stainless Steel Baffle Slot Filter
Features
- 3X LAYER GREASE FILTER - Elica aluminum mesh filters are a step above the competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining, and provides durability to repeated cleanings in the dishwasher.
- LED LIGHT - LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life is over 20,000 hours, and should last the full life of the hood.
Specifications
| Item Number | EAL330B1 |
| UPC Code | 190603000665 |
| Brand Name | Elica |
| Series | Allasio |
| Blower Type(internal) | 302 CFM (3- speed) |
| Noise (sones) | 5.2 Sones |
| Finish | Black |
| Controls | Backlit Electronic Push Buttons |
| Illumination | 2 LED, 2.1 W, 3000 K |
| Filters | (2) Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| Duct Transition | 3 1/4” X 10” rectangular or 7” Round with Back Draft Damper (top only) |
| Installation Type | Ducted (Recirculating Kit sold separately) |
| Electrical | 120 V - 60 Hz, 272 W |
| Width | 30" |
| Depth | 20" |
| Height | 4 3/4" |
| Weight in lbs | 31 |
Technical Drawings & Dimensions
| A | 30" |
| B | 20" |
| C | 4 3/4" |
| D | 2 2/5" |
| E | 3 1⁄4" x 10" |
| F | 5 1/10" |
Warranty
 |
Two (2) Years Parts & In-Home Labor |
Documents & Files
