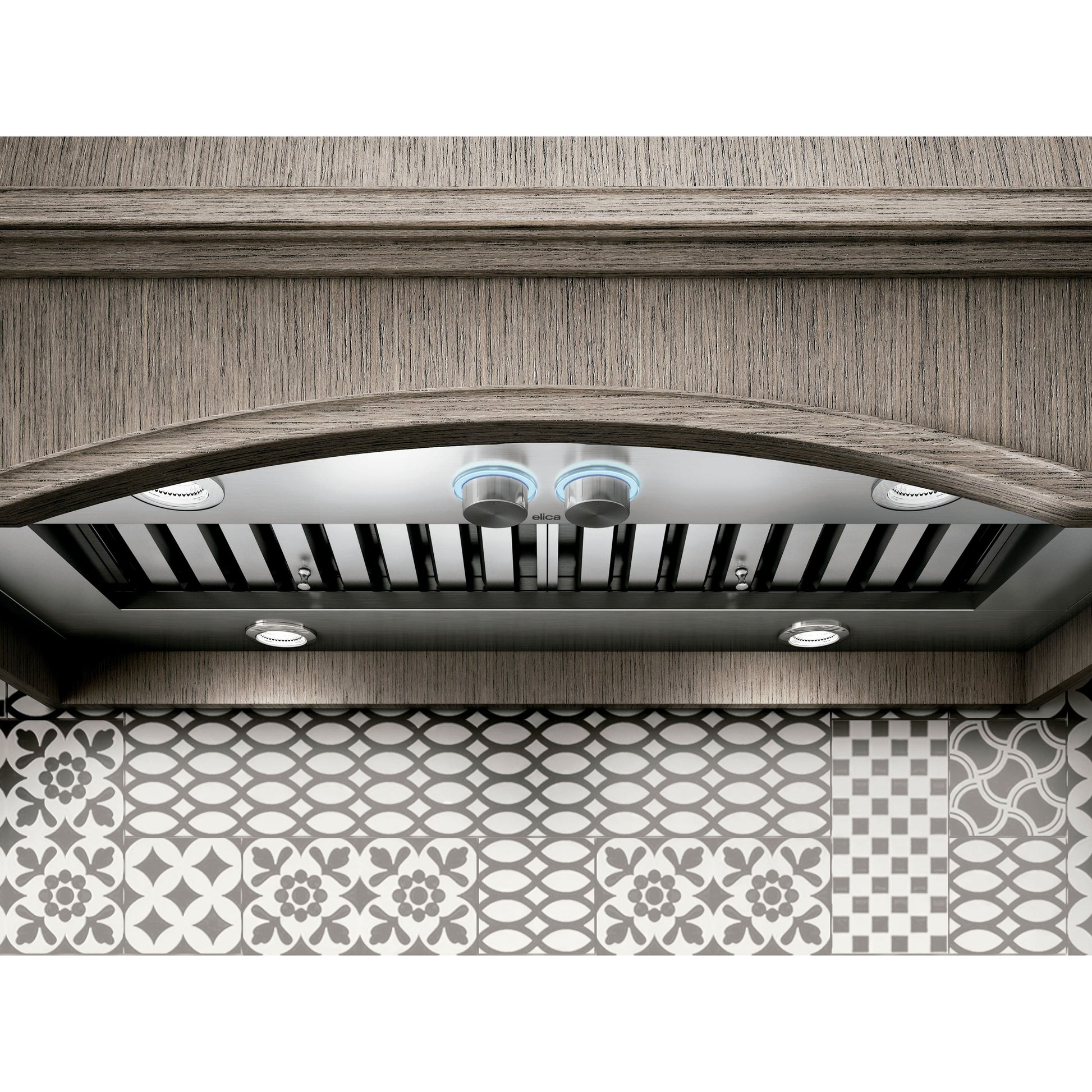

Arezzo provides professional-grade performance while being discreetly mounted inside the cabinetry.

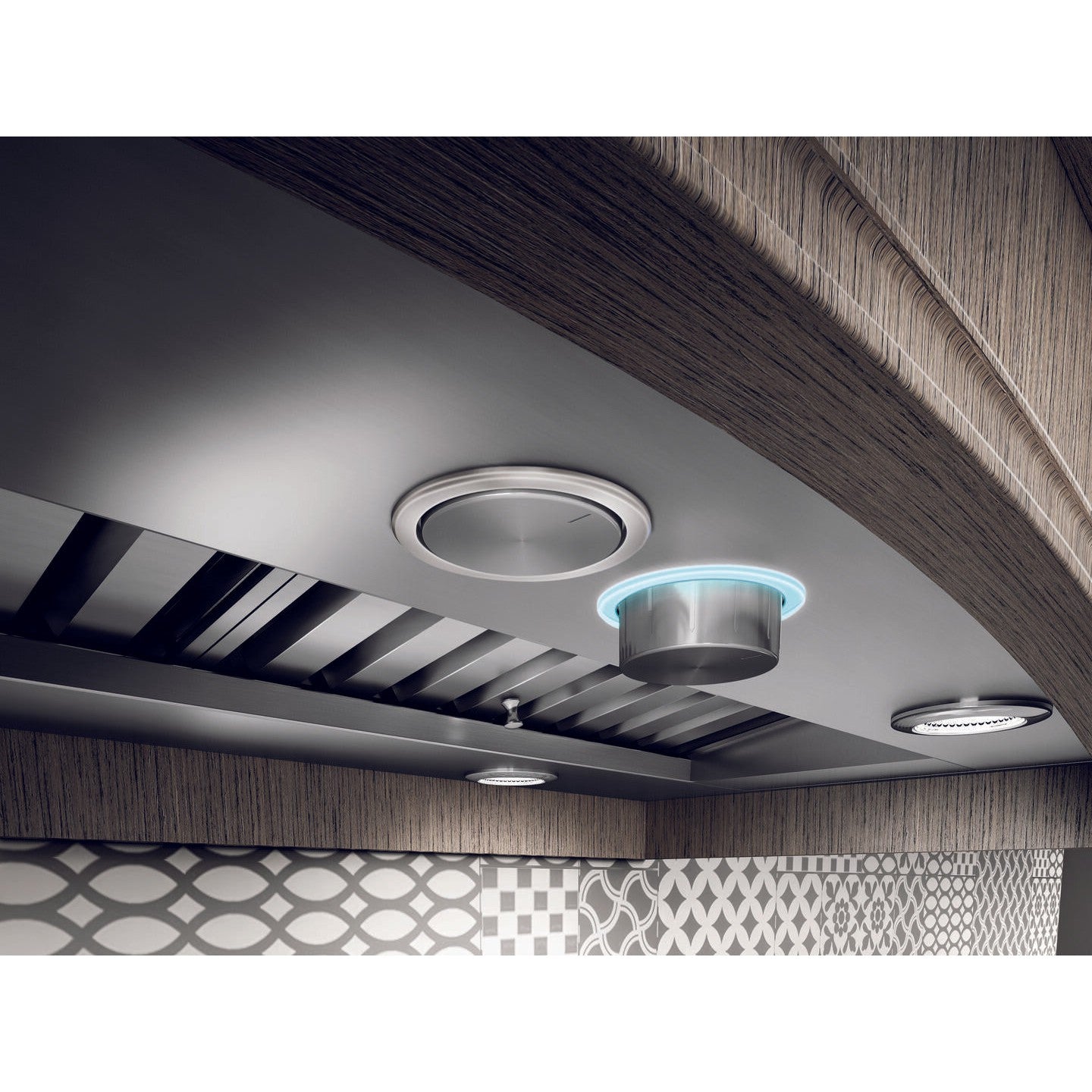

Featuring heavy-gauge Stainless Steel "Seamless" construction, Arezzo delivers superior quality and Italian craftsmanship. with fully retractable knobs with blue backlighting, that can be hidden when not in use to not interfere with the hood aesthetics. Arezzo is available with a 600 CFM blower in 28 1/2" and 34 1/2" width and equipped with a 1200 CFM blower for widths of 34 1/2", 40 1/2" and 46 1/2" for extraordinary ventilating power. Easy maintenance, higher efficiency, and a cleaner kitchen are ensured by Elica's patented professional Baffle Filters, which capture a higher percentage of contaminants and hold larger volumes of grease than traditional baffle filters. Damp location installation approved. Special Note for Duct Transition in this model: Models w/1200 cfm blowers (Old Models-10" Round. New Models 8" Round) Models w/600 cfm blowers (Old Models - 10" Round. New Models 6" Round) Consult your local Elica dealer with any questions.
What's Included
- 28" Stainless Steel 4-Speed Retractable Rotating Knobs Insert Range Hood
Not Included (Sold Separately)
- Inline Blower Kit 1200 CFM 8" or 10" Duct
- External Blower Kit 1200 CFM 8" or 10" Duct
- Electronic CFM Reduction Bypass Kit
- Recirculation Filters - Contains 4 round carbon filters
- Recirculation Grate/Deflector - Contains one 10" round metal grate/deflector for 10" or 8" round ducting
Features
- HUSH SYSTEM - An exclusive sound deadening tehcnology that effectively reduces sound levels by over 35%.
- SEAMLESS CRAFTSMANSHIP - Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
- HEAT GUARD - Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
- PROFESSIONAL PERFORMANCE - Special features and high performances for models with aspiration capacity between 600 and 1200 CFM.
- STAINLESS STEEL BAFFLE FILTERS WITH GREASE COLLECTORS - Designed for high airflow cooking, the “S” shape design traps high volumes of grease.
Specifications
| Item Number | EAR628S4 |
| UPC Code | 190603002058 |
| Brand Name | Elica |
| Series | Arezzo |
| Blower Type(internal) | 600 CFM (4-speed) |
| Noise (sones) | 7 Sones |
| Finish | Stainless Steel |
| Controls | Fully Retractable Rotating Knobs with Blue Blacklight |
| Illumination | 2 LED, 6.5 W, 3000 K, 540 Lumen |
| Filters | (2) Dishwasher-Safe, Professional Stainless Steel Baffle Filters |
| Duct Transition | 10” Round with BackDraft Damper (top only) |
| Installation Type | Ducted or Recirculating with kit |
| Electrical | 120V – 60 Hz, 463 W |
| Width | 28 1/2" |
| Depth | 22" |
| Height | 11 7/8" |
| Weight in lbs | 57 |
Technical Drawings & Dimensions
| A | 28" | F |
12 7/16" |
| B | 22" | G | 29 13/16" |
| C | 5 7/16" | H | 10 1/8" |
| D | 6 1/2" | I | 10" |
| E | 27 9/16" | J | 3/4" |
Warranty
 |
Two (2) Years Parts & In-Home Labor |
