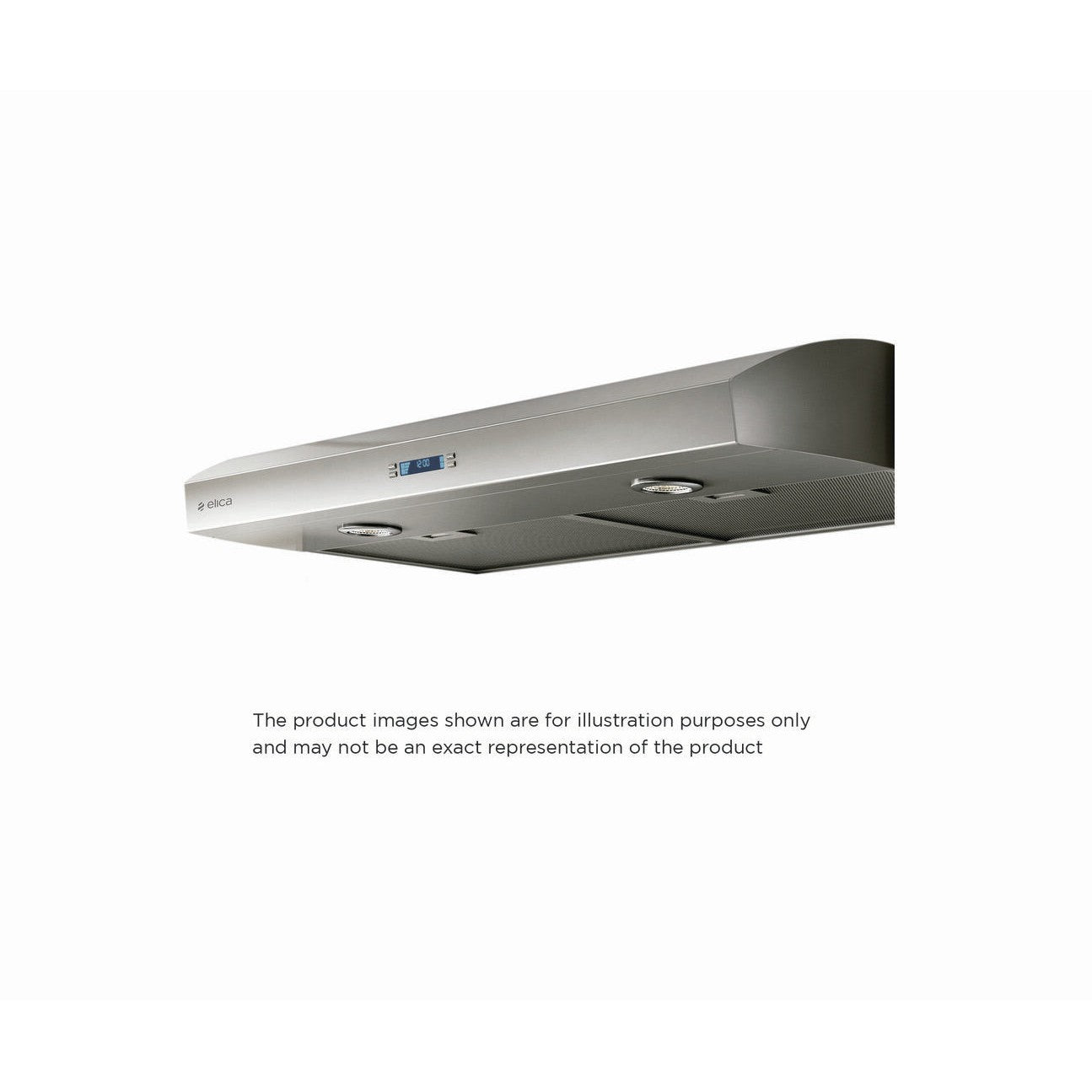

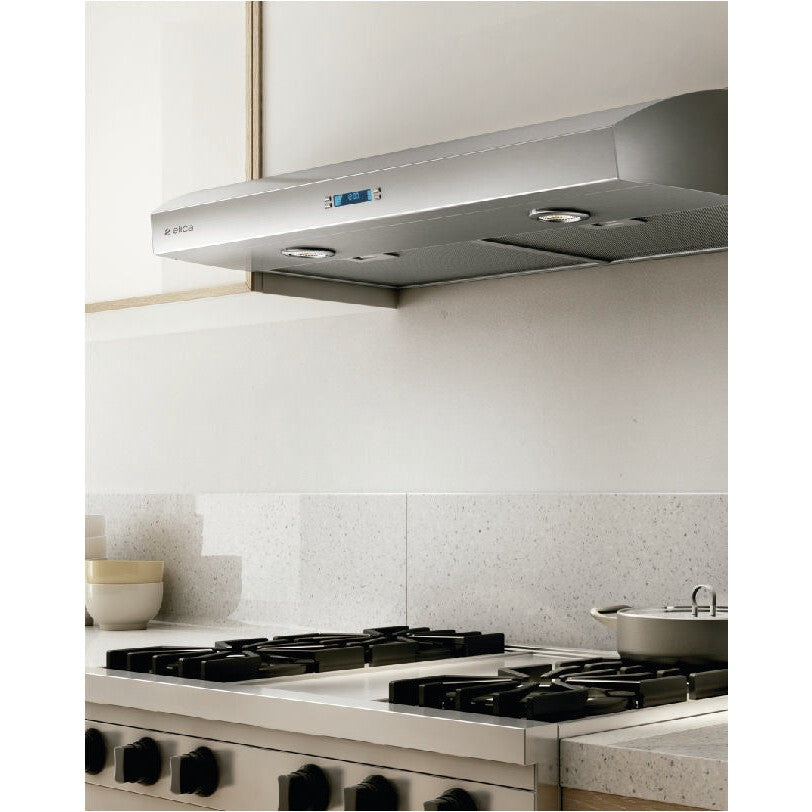

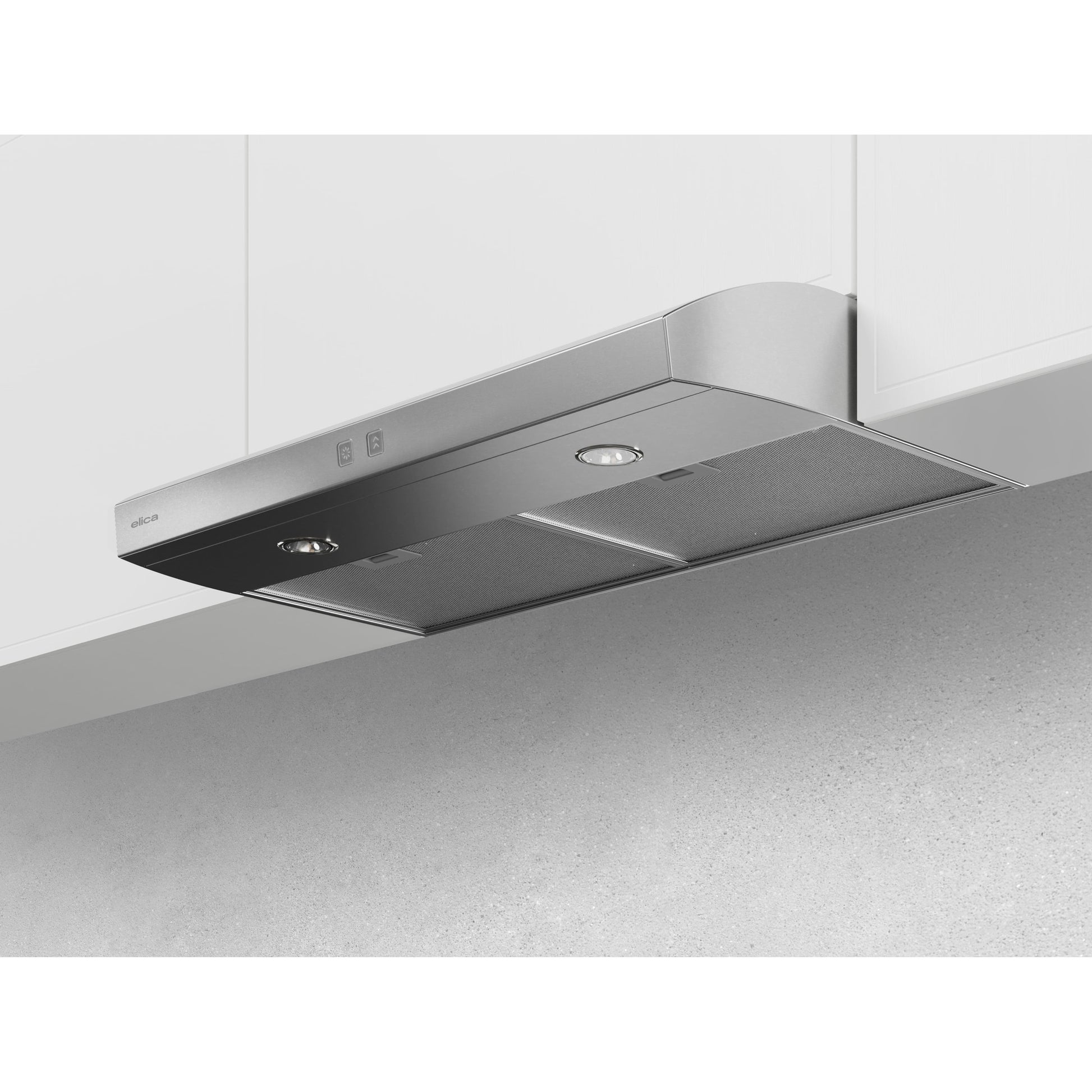

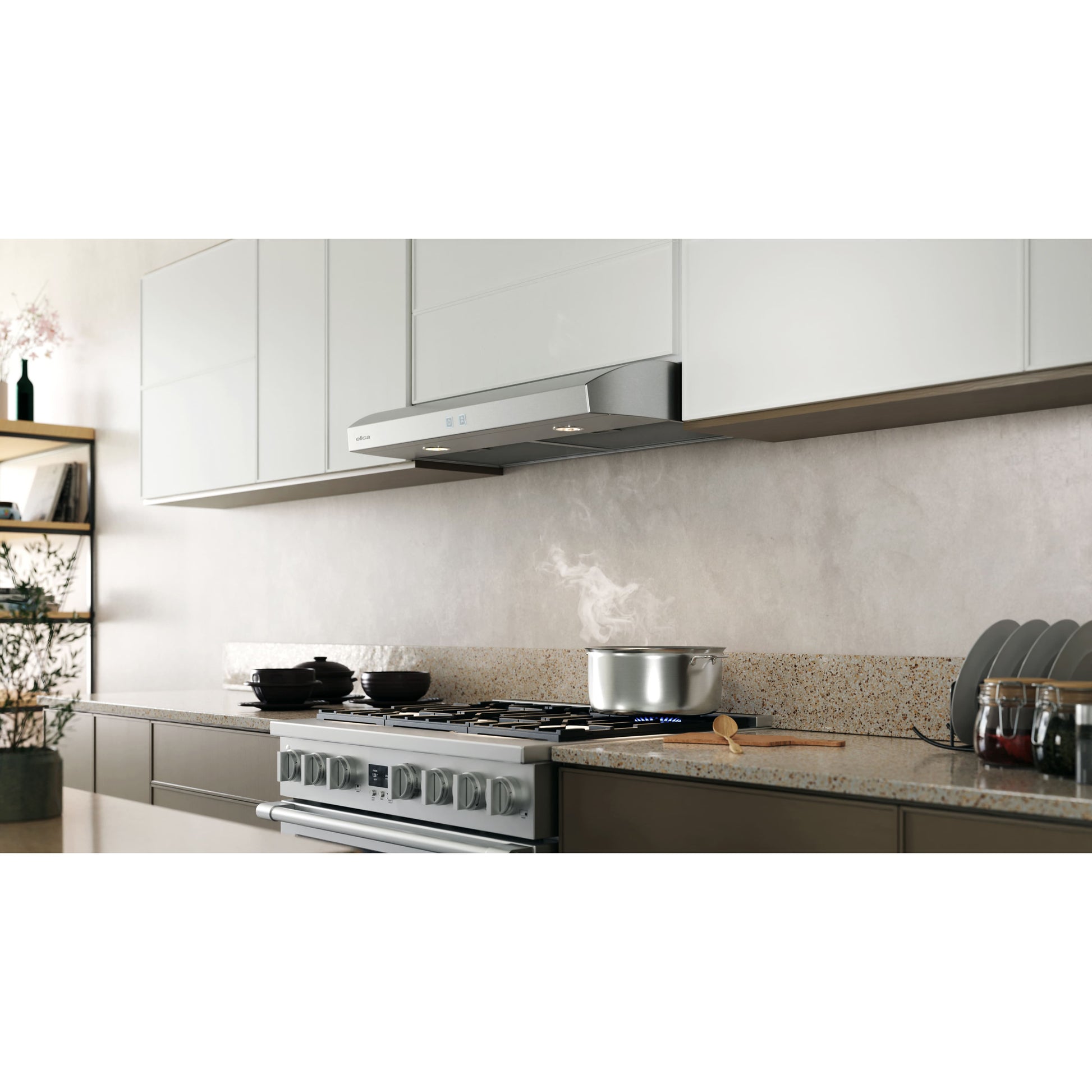

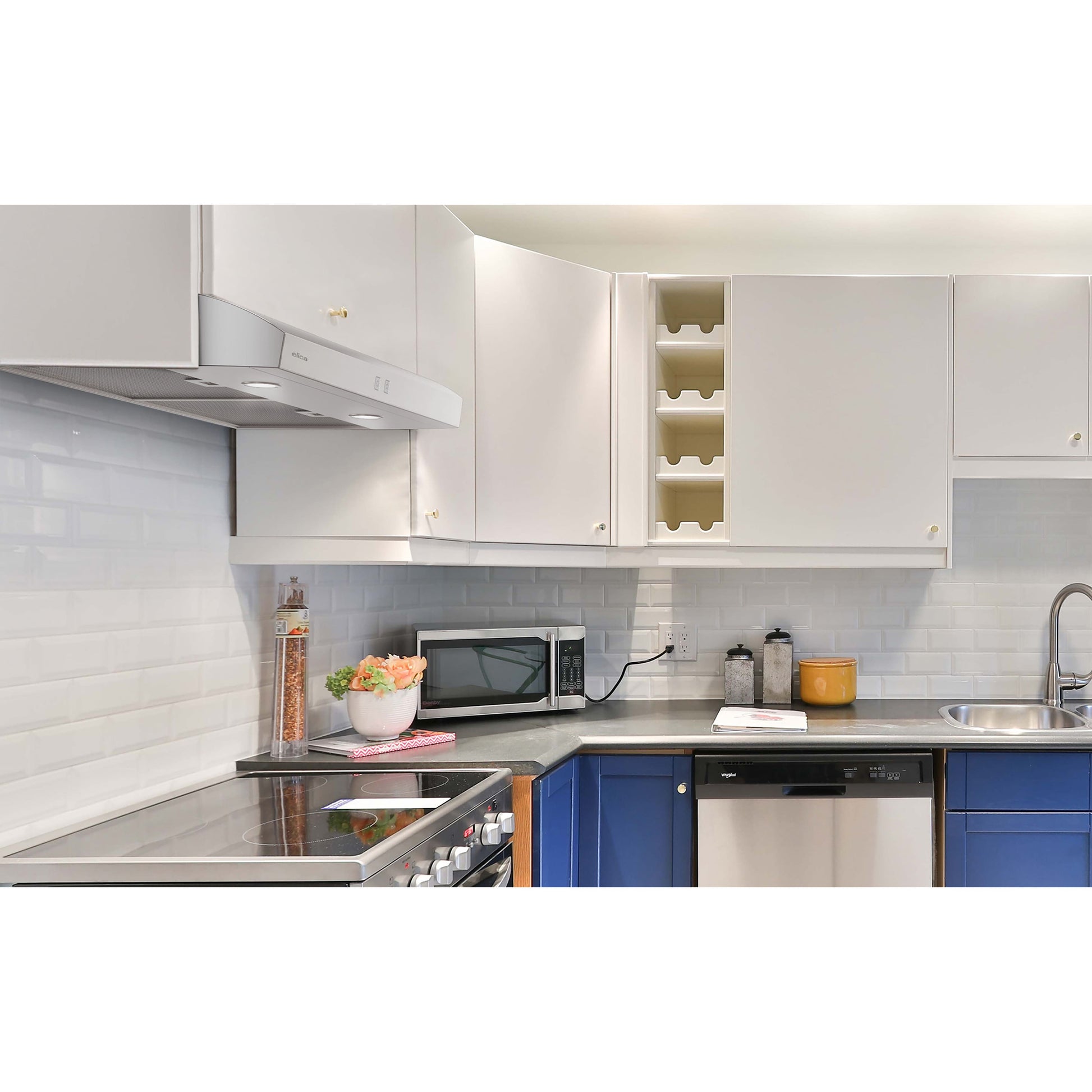

With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is limited.

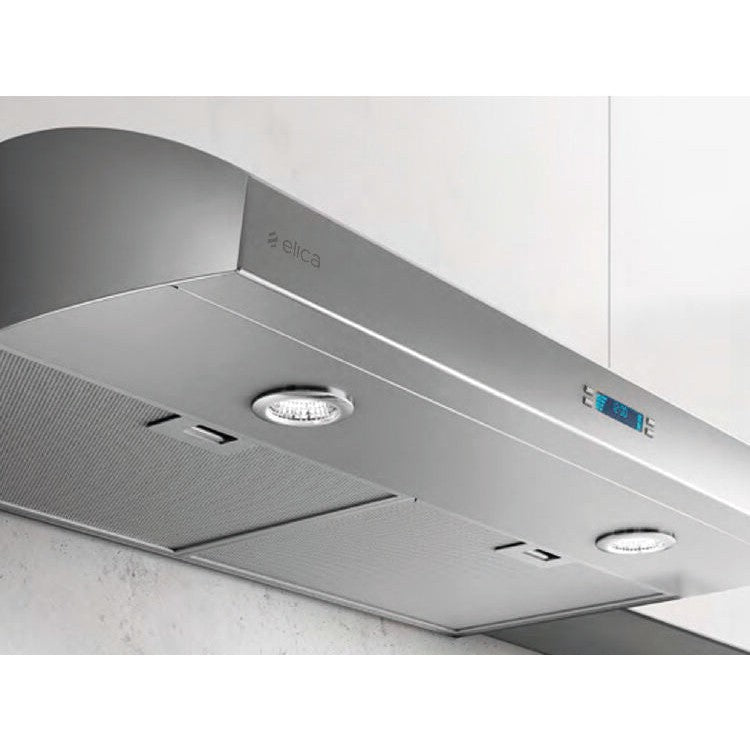

An upgraded 4-speed, 400 CFM internal blower provides sufficient ventilation power, equipped with dishwasher-safe, anodized aluminum mesh filters and multiple backlight color touch controls illuminated in elegant white, green, blue or red. Available in 30” or 36” width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

What's Included

• 1 - Hood assembly and LED lamps already installed
• 1 - Rectangular transition 31 ⁄ 4" x 10" (8.3 x 25.4 cm) with back draft dampers
• 4 pcs - 4.5 x 13 mm screws
• 3 pcs - 3.5 x 6.5 mm screws
• Duct Transition - Rectangular 10" x 3 1/4" (Top and Rear)
• No Return Valve - Rectangular 10" x 3 1/4"

Not Included (Sold Separately)

• Recirculating Kit
• Back Draft Damper - 7" Round
• Stainless Steel Baffle Slot Filter

Features

• 3X LAYER GREASE FILTER - Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
• CFM REDUCTION - CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce the maximum blower CFM, to meet local code requirements.
• HEAT GUARD - A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (> 316 ° F) and will automatically adjusts the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
• LED LIGHT - LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life is over 20,000 hours, and should last the full life of the hood.

Specifications

Technical Drawings & Dimensions

Warranty

Two (2) Years Parts & In-Home Labor

Documents & Files

• Install Guide
