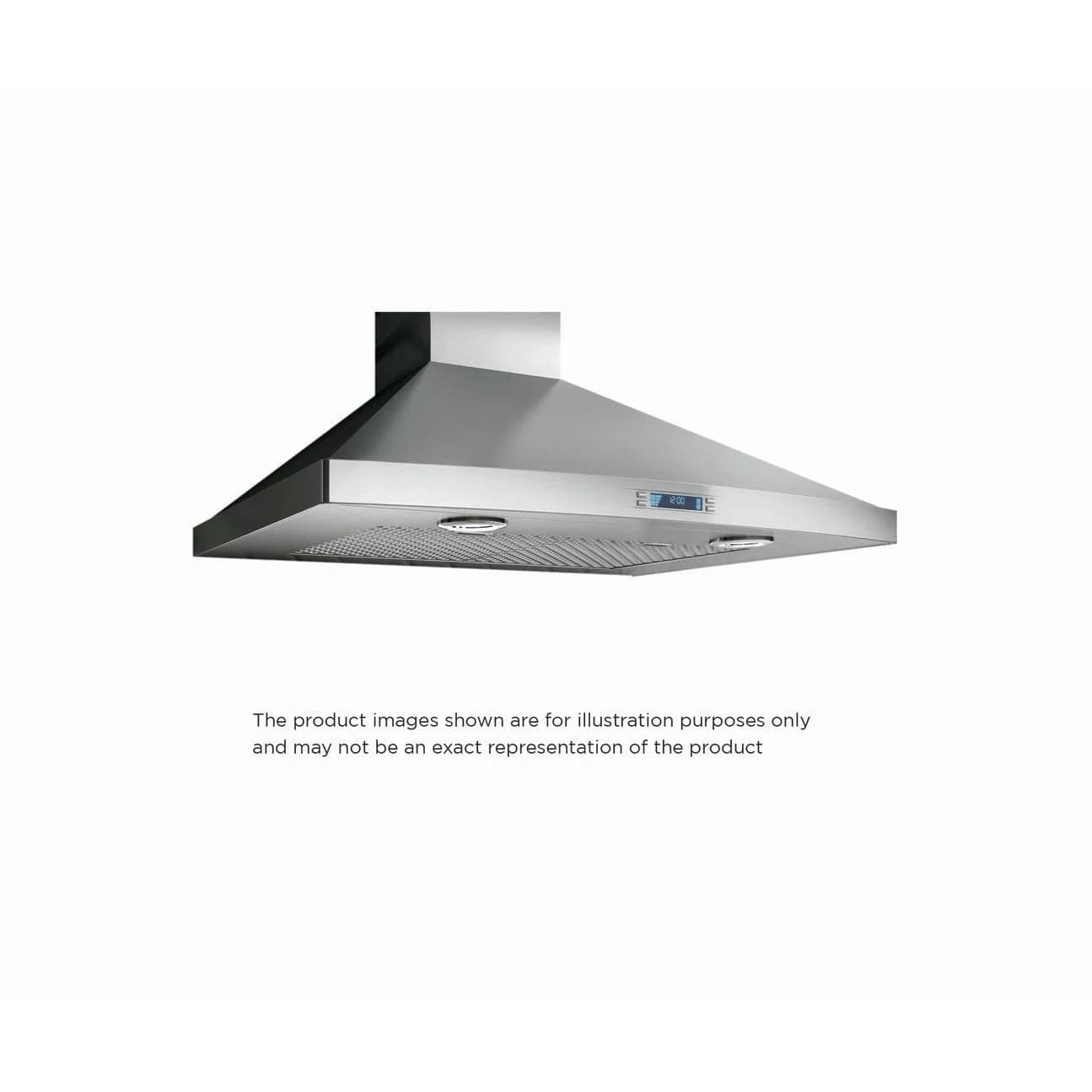

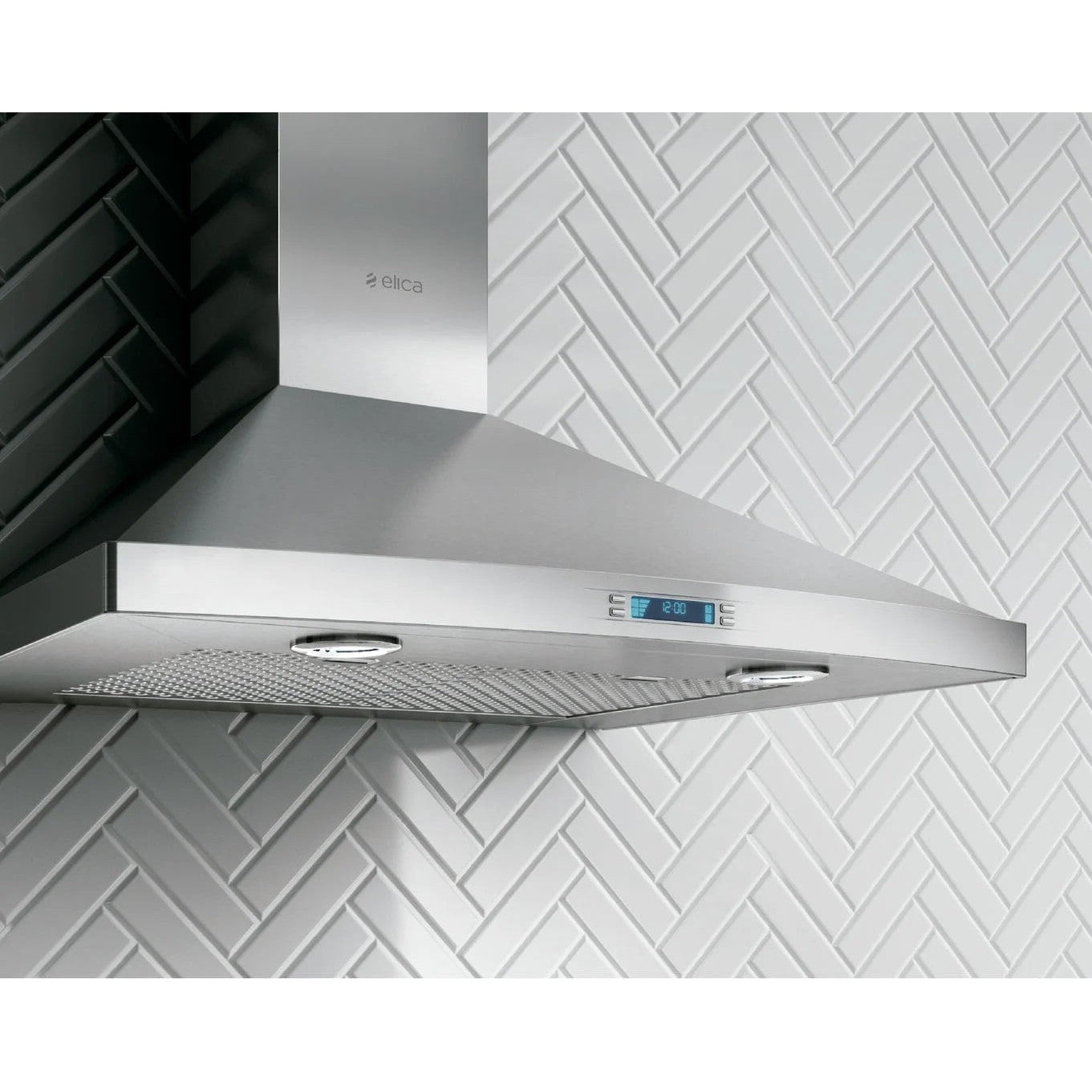

The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement. Available in 30”or 36” widths, Pilato features include a powerful 600 CFM blower, 2 LED lights , dishwasher safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety.

Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

What's Included

• 36" Stainless Steel 3-Speed Multi Function Electronic Control Wall Mount Range Hood
• Hood canopy assembly with blower, transition
• 2 Halogen lamps
• 2 Grease filters

• Duct cover

• Hardware bag with:

  • Template.

  • Duct cover support bracket (1 piece)

  • Use, care and installation guide

  • Wood screws (6 pieces - 5 x 45)

  • Assembly screws
         - 2 (2.9 x 6.5)
         - 2 (3.5 x 9.5)

  • Hood attachment anchors screws
         - 2 (8 x 40)
         - 4 (10 x 50)

Not Included (Sold Separately)

• Recirculating Kit
• Chimney Extension Kit

Features

• CFM REDUCTION - CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce the maximum blower CFM, to meet local code requirements.
• HUSH SYSTEM - An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
• TOP PERFORMANCE - Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
• LED LIGHT - LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life is over 20,000 hours, and should last the full life of the hood.
• CLEAN FILTER ALARM - When activated, your hood will emit a “beep” signal to let you know when is time to clean your filters. For some models, an intermittent light remain active until cleaning filter action is completed. See instrucions manual to activate feature.
• REPLACE FILTER ALARM - When activated, your hood will emit a “beep” signal to let you know when is time to replace carbon filters. See instrcutions manual to activate feature.

Specifications

Technical Drawings & Dimensions

*Ductless (Recirculating) Version
**Ducted Version

Warranty

Two (2) Years Parts & In-Home Labor

Documents & Files

• Install Guide
