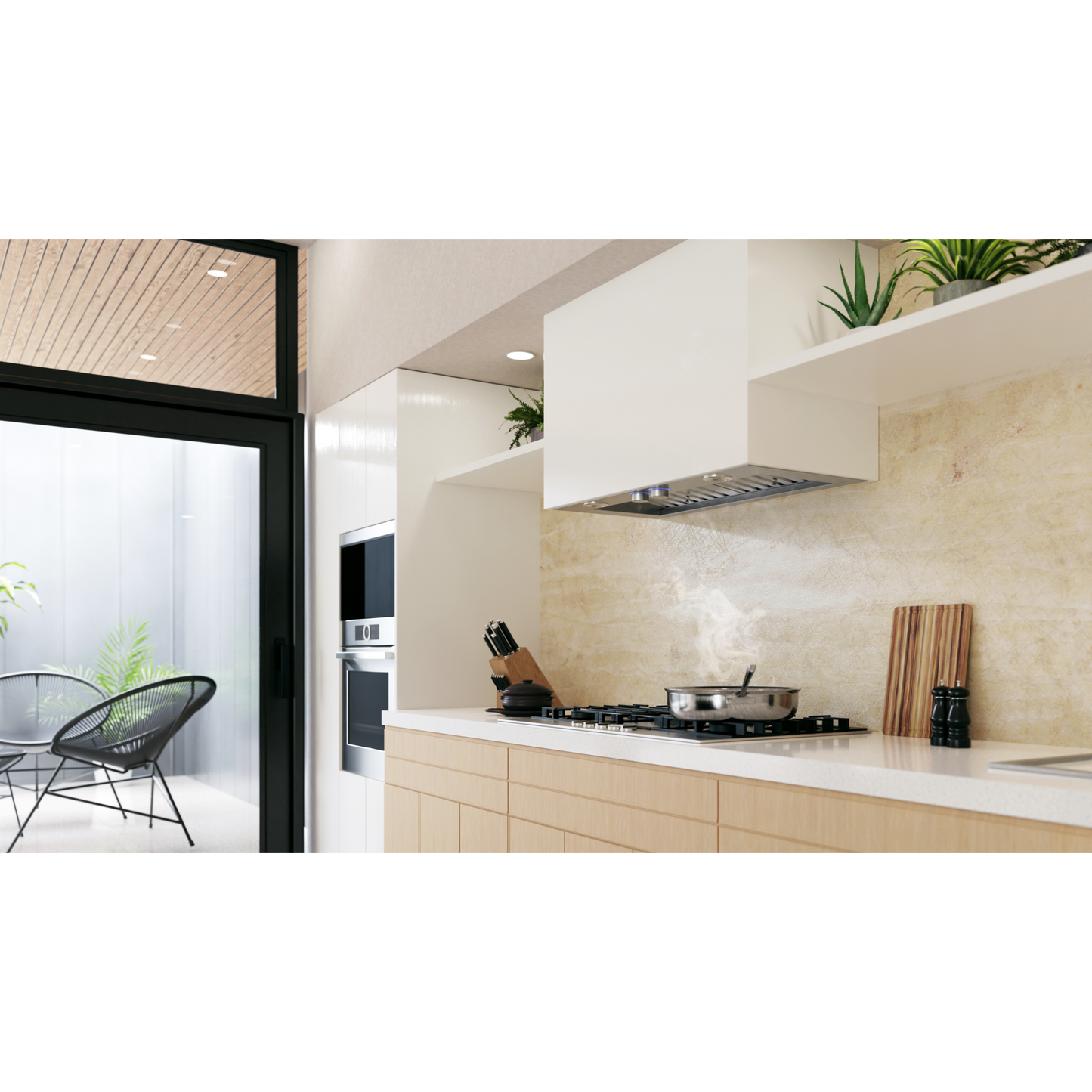

True professional-grade performance with our stainless steel insert range hood, with slim 15" depth, ensuring optimal functionality and style in your kitchen.
Scanno has only 15 5/8” depth to support shallow cabinet, and offers 4-speed, 600, and 1200 CFM blowers for extraordinary ventilating power. The All-In-One design avoids the need to purchase a stainless steel liner. Scanno comes equipped with ergonomic rotating knob controls which discreetly recess out of sight when not in use and long-life LED lighting illuminates the cooking surface. Damp location installation approved. Special Note for Duct Transition in this model: Models w/1200 cfm blowers (Old Models-10" Round. New Models 8" Round) Models w/600 cfm blowers (Old Models - 10" Round. New Models 6" Round) Consult your local Elica dealer with any questions.
What's Included
- 28" 1200 CFM Stainless Steel 4-Speed Retractable Rotating Knobs Insert Range Hood
Not Included (Sold Separately)
- Inline Blower Kit 1200 CFM 8" or 10" Duct
- External Blower Kit 1200 CFM 8" or 10" Duct
- Remote Inline Blower Shell Kit - 8" or 10" duct size compatible
- Remote External Blower Shell Kit - 8" or 10" duct size compatible (304 stainless)
- Electronic CFM Reduction Bypass Kit
- Recirculation Filters - Contains 4 round carbon filters
- Recirculation Grate/Deflector - Contains one 10" round metal grate/deflector for 10" or 8" round ducting
Features
- HUSH SYSTEM - An exclusive sound deadening tehcnology that effectively reduces sound levels by over 35%.
- SEAMLESS CRAFTSMANSHIP - Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
- HEAT GUARD - Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
- PROFESSIONAL PERFORMANCE - Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.
- STAINLESS STEEL BAFFLE FILTERS WITH GREASE COLLECTORS - Designed for high airflow cooking, the “S” shape design traps high volumes of grease.
Specifications
| Item Number | ESC128SS |
| UPC Code | 190603005516 |
| Brand Name | Elica |
| Series | Scanno |
| Blower Type(internal) | 1200 CFM (4-speed) |
| Noise (sones) | 8.5 Sones |
| Finish | Stainless Steel |
| Controls | Fully retractable rotating knobs with blue backlighting |
| Illumination | 2 LED, 7.5 W 3000 Kelvin, 540 lumen |
| Filters | (2) Dishwasher-Safe, Professional Stainless Steel Baffle filter |
| Duct Transition | 10” Round with BackDraft Damper (top only) |
| Installation Type | Ducted or Recirculating with Kit |
| Electrical | 120V – 60 Hz, 490 W |
| Width | 28 1/2" |
| Depth | 15 1/2" |
| Height | 11 7/8" |
| Weight in lbs | 55 |
Technical Drawings & Dimensions
| A | 28 1/2" | F |
12 7/16" |
K | 17 1/8" |
| B | 15 3/4" | G | 24 5/16" | L | 3 1/8" |
| C | 5 7/16" | H | 10 1/8" | M | 2 5/8" |
| D | 6 1/2" | I | 8" | N | 11/16" |
| E | 22" | J | 3/4" |
Warranty
 |
Two (2) Years Parts & In-Home Labor |
