Elica Vavano 48" Stainless Steel 4-Speed Rotating Knob Wall Mount Range Hood
Elica Vavano 48" Stainless Steel 4-Speed Rotating Knob Wall Mount Range Hood
Optional Accessories
Couldn't load pickup availability
✔ Same-Day Order Processing
Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Elica's professional grade hood with a robust and minimalist design, that's only 8" tall.

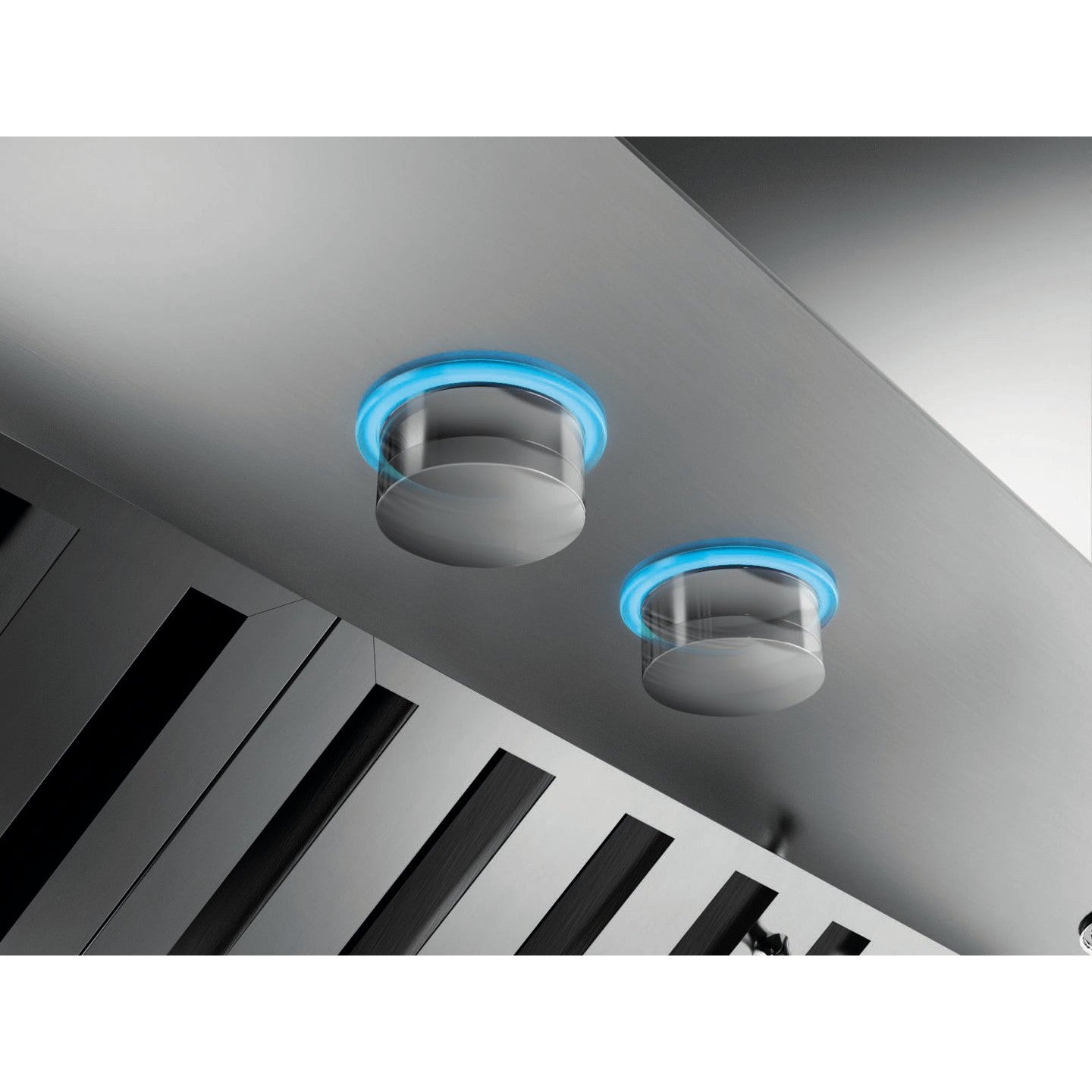

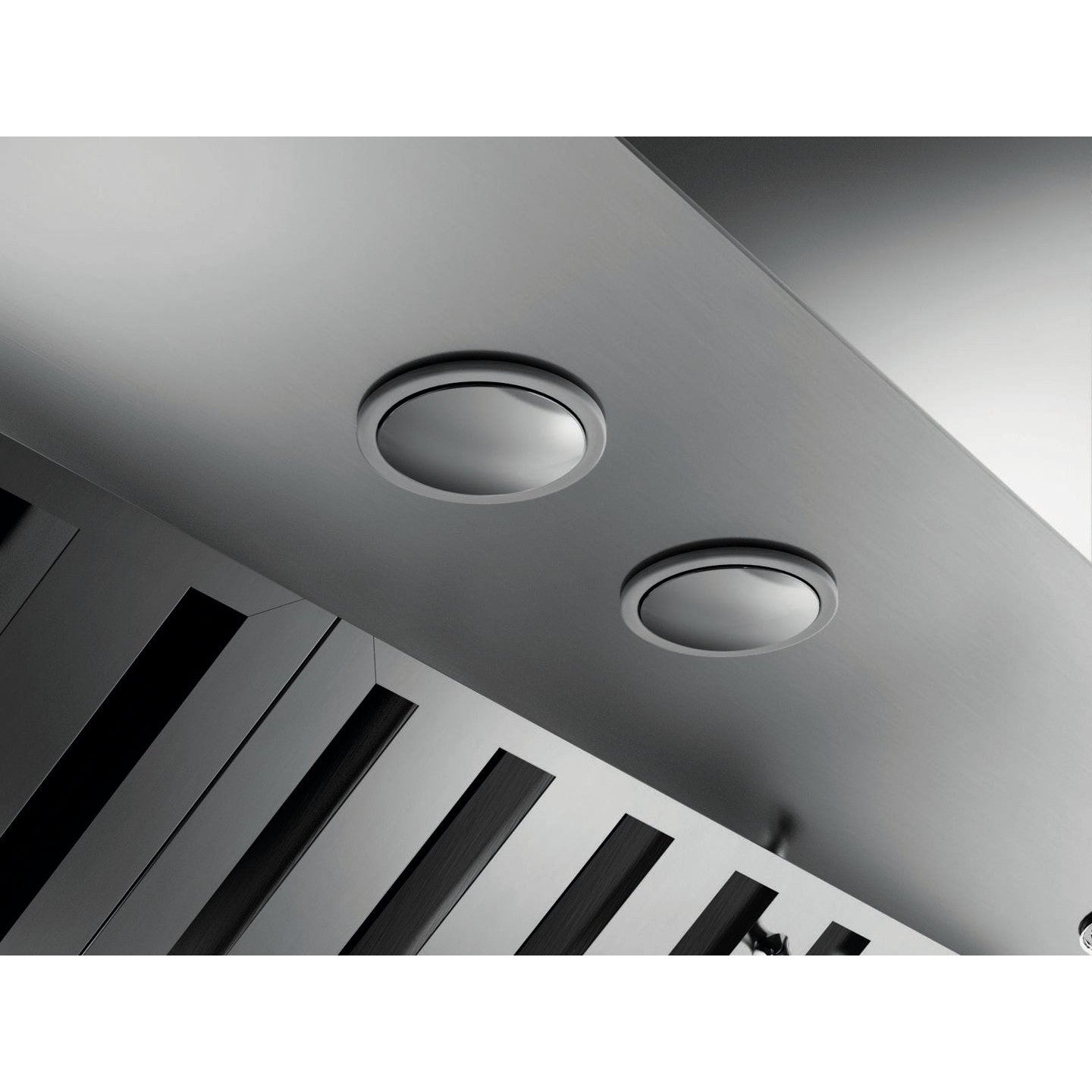

The design is complimented by a stylish beveled front rim design and metallic rotating knob controls that fully recess Out-of-Sight for a super slim appearance. Plus Elica's branding is hidden for easy coordination with other appliances. Vavano has the extra depth to 24" and 600 CFMs power to support professional ranges and cooktops. Entertain and enjoy the conversation, knowing Elica's patented HUSH Sound Suppression System is reducing sound by up to 35%. Easy maintenance and a cleaner kitchen are assured with long-life LED lighting plus professional stainless steel baffle filters that capture grease in the most efficient way. Ducted installation only.
What's Included
- 48" Stainless Steel 4-Speed Rotating Knob Wall Mount Range Hood
Not Included (Sold Separately)
- Chimney Ext Kit - Reaches 9'0" - 13'6" (over elect. cooking), 9'6" - 13'6" (over gas cooking)
- Inline Blower Kit 1200 CFM 8" or 10" Duct
- External Blower Kit 1200 CFM 8" or 10" Duct
- Recirculation Filters
- Electronic CFM Reduction Bypass Kit for 600 cfm blowers (achieves < 300 cfm)
- 6" Round Transition Kit - Replaces 8" transition supplied with hood
Features
- HUSH SYSTEM - An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- SEAMLESS CRAFTSMANSHIP - Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
- HEAT GUARD - Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
- PROFESSIONAL PERFORMANCE - Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.
- STAINLESS STEEL BAFFLE FILTERS WITH GREASE COLLECTORS - Designed for high airflow cooking, the “S” shape design traps high volumes of grease.
Specifications
| Item Number | EVV648S1 |
| UPC Code | 190603002324 |
| Brand Name | Elica |
| Series | Vavano |
| Blower Type(internal) | 600 CFM (4 -speed) |
| Noise (sones) | 7 Sones |
| Finish | Stainless Steel |
| Controls | Fully Retractable Rotating Knobs with Blue Backlight |
| Illumination | 2 LED, 6.5 W, 3000 K, 540 Lumen/Lamp |
| Filters | (3) Dishwasher-Safe, Professional Stainless Steel Baffle |
| Duct Transition | 8” Round with BackDraft Damper (top only) |
| Installation Type | Ducted Installation Only |
| Electrical | 120V – 60 Hz, 490 W |
| Width | 48" |
| Depth | 24" |
| Height | 5" |
| Weight in lbs | 96 |
Technical Drawings & Dimensions
| A | 48" | E* |
Max: 90" Min: 48" |
| B | 24" | F | 10 5/8" |
| C | 5" | G | 13 5/64" |
| D | Max: 54" Min: 30" |
H | 8" |
* with Long Chimney Extension Kit
Warranty
 |
Two (2) Years Parts & In-Home Labor |
