KOBE Range Hoods CH7748SQ6-WM-XX

KOBE Premium Mila CH77 SQ6-XX Series 48" Hands-Free Wall Mount Range Hood With Flame and Temperature Sensor, Delay Shutoff, 3-Level Lighting, and Parametric Suction

Name: KOBE Premium Mila CH77 SQ6-XX Series 48" Hands-Free Wall Mount Range Hood With Flame and Temperature Sensor, Delay Shutoff, 3-Level Lighting, and Parametric Suction
Brand: KOBE Range Hoods
SKU: CH7748SQ6-WM-XX
Price: 1344.0 USD
Availability: InStock

$1,344.00

~~$1,545.00~~ $1,344.00

Sale Sold out

Product variants

Width

Type

Remote Control (Recommended)

Stainless Steel Oxy-Cleaner

Estimated Delivery Date: Between Monday, Apr 7 and Wednesday, Apr 16 to all states excl. Alaska & Hawaii if ordered in the next 17 hours 8 minutes 2 seconds.

✔ Free Shipping on Orders Over $300
✔ Same-Day Order Processing

Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Description

KOBE MILA Wall Mount Range Hood is Next Level in Range Hoods. Featuring 600 CFM Internal Blower and utilizing KOBE’s VENTelligent™ System to allow carefree venting. No need to worry about turning your hood on and off. No need to worry about changing the fan speed. KOBE’s Carefree venting does this for you. The MILA Series utilizes an unique method of instantly turning on from a flame so you will not forget to turn on your range hood. Combined with Perimetric Suction and Airflow Efficiency Panels (AEP), this Range Hood not only works for you but complements any contemporary and modern kitchen. Easy to remove and clean reusable panel (AEP) allows for you to enjoy the luxury of removing odors, contaminants and giving you the optimal living environment.

KOBE VENTelligent™ System w/ Patented Flame & Temperature Sensor Control
Powerful 600 CFM Internal Blower
Automatic ON/OFF controlled by Flame
Automatic Fan Speed controlled by Temperature
Durable 18-Gauge Commercial Grade Stainless Steel with seamless design
6 Speeds – Automatic or Manual: QuietMode™, Speed 1-5
ECO Mode to remove excess moisture, microscopic particles and odors
Permetric Suction with Airflow Efficiency Panel
Easy to Maintain and Clean
Optimally used for Gas Ranges and Cooktops

What’s Included

1 KOBE CH7748SQ6-WM-XX 48" Wall Mount Range Hood

Duct Cover-Mounting Bracket
Duct Cover
6” Round Plastic Exhaust
Blower System
Stainless Steel Filter
Temperature Sensor
Motor Transformer
Control Unit
Capacitor
Processor Board
UV Sensor
Light Panel Support
LED Light (3W)
Airflow Efficiency Panel (14.5625” x 12.4375”)
Damper

Not Included

Remote Control - KRC6 (Sold Separately)
Backsplash Panel - SSP36 (Sold Separately)
Stainless Steel Oxy-Cleaner - KSSC-1/KSSC-2 (Sold Separately)

Features

QuietMode™	At 240 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (2.0 sone)
Speed / Control	6-Speed / Electronic Button with Flame Sensor / Delay Shutoff – 5-Minutes
Light	The hood is equipped with 3W LED lights with 3-level lighting
Filters	Dishwasher safe professional airflow efficiency panel allow for easy cleaning
Attractive Appearance	The seamless curves and stylish appearance of the hood will compliment any kitchen
Time Delay Control	The Time Delay System features a 5-minute delay shutoff
ECO Mode	ECO Mode runs the fan on the QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote a cleaner kitchen air quality
VENTelligent™	KOBE’s VENTelligent™ System is our unique system of Carefree venting that allows your hood to automatically turn on and off as well as go into ECO Mode
Easy to Clean	KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood
Quality	Parts are checked for defects and designed for trouble free long term use
Easy to Install	Our special design makes installation fast and easy
Color	Commercial Grade Stainless Steel
Versatile Installation	This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.
Certifications	KOBE range hoods is CSA (U.S.A & Canada) and ETL (U.S.A & Canada) approved

Specifications

Appearance
Color	18-Gauge Commercial Grade Stainless Steel
Design	Seamless / Satin Finish

Details
Size	48"
Hood Weight	Net - 57.0 lbs Gross - 71.5 lbs
Speed	QuietMode™ - 240 CFM Speed 1 - 330 CFM Speed 2 - 400 CFM Speed 3 - 470 CFM Speed 4 - 510 CFM Speed 5 - 600 CFM
Sone	QuietMode™ - 2.0 Speed 1 - 3.5 Speed 2 - 4.5 Speed 3 - 5.6 Speed 4 - 6.0 Speed 5 - 7.0
Controls	6-Speed Electronic Control with LED Display, Flame and Temperature Sensor
Blower	Single Horizontal Squirrel Cage
Number of Blower	1
Ductless/Recirculating	No
Ducting	Vertical
Filter	Airflow Efficiency Panel
LED	Includes 3W LED Lights that will vividly illuminate your cooking area LED Light is known as to use less energy than Halogen Light 2 x 3-watt LED light
QuietMode™	Yes
ECO Mode	ECO Mode is KOBE's unique feature ECO Mode runs the fan on the QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote a cleaner kitchen air quality
Flame / Temperature Sensor	The flame sensor will allow the hood to turn on automatically while detecting a flame
Airflow Efficiency Panel	The panel increases static air pressure by limiting airflow space Parametric panel is well know to improve suction performance and sound reduction
Delay Shutoff	5-Minutes Delay Shutoff
Wireless Remote Control (Optional with KRC6)	Yes
Type	Wall Mount
Exhaust	Top - 6” Round
Backsplash Panel (Sold Separately)	SSP30 36" x 32"
Consumption	420W
Ampere	3.5A

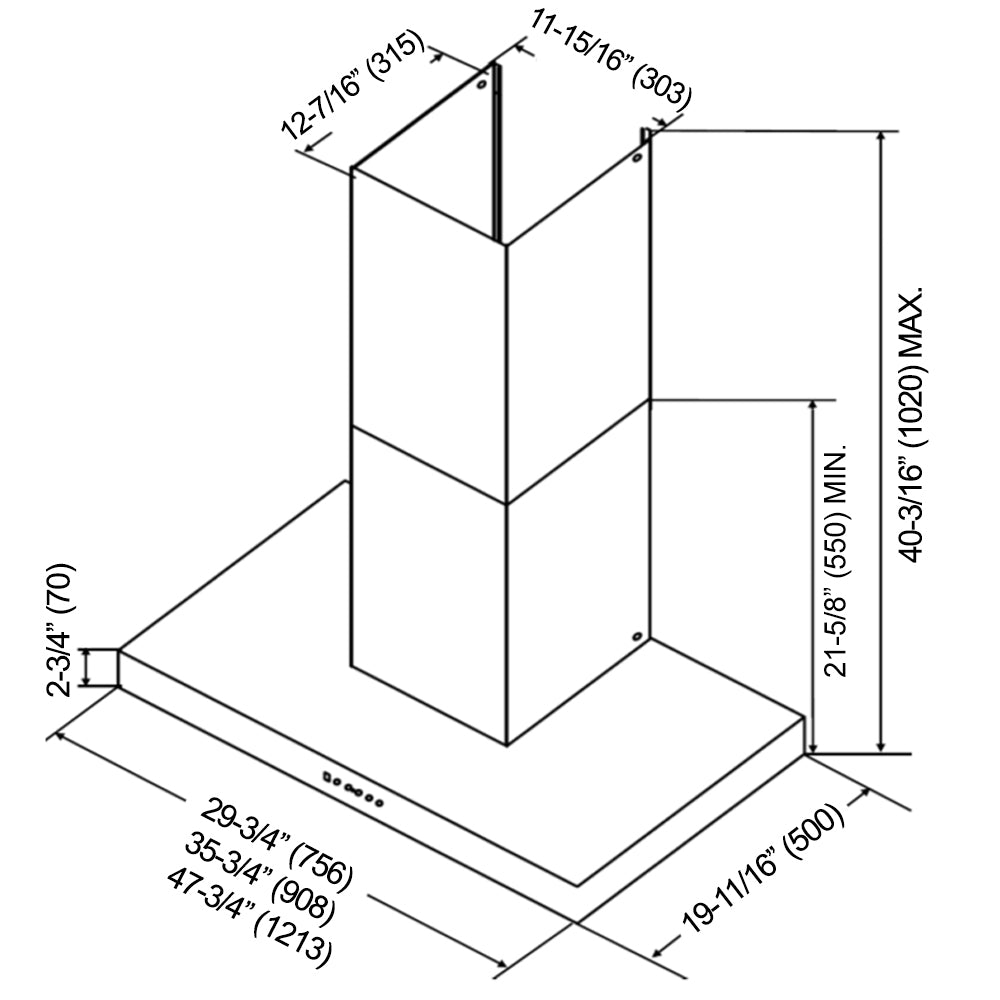

Dimensions

Height	13.25"
Width	47.75"
Depth	19.6875"

Warranty

Warranty is limited to non-commercial indoor use of a KOBE Range Hood products. Any warranty claim must include the original sales receipt or invoice as proof of purchase of a Range Hood from an AUTHORIZED Dealer or Dealer of an Authorized Distributor of KOBE Range Hoods products. Authorized Dealers can be found on our website or contact KOBE directly to verify. KOBE Range Hoods warrants all new and unopened products manufactured or supplied by it to be free from defects in workmanship and materials. For a complete warranty policy, please refer to our installation manual.

Premium: 2 Year Parts & Service
Deluxe: 2 Year Parts, 1 Year Service
Brillia: 2 Year Parts, 1 Year Service
Any new parts purchased from KOBE Range Hoods will come with 90-days warranty
**INX2930SQBF-500-1 comes with 2 Year Parts & 0 Year Service

In order to obtain warranty service, you must provide proof of original purchase from a KOBE authorized dealer. Please keep a copy of your original invoice as proof of purchase.

Two-Year Limited Labor Warranty on Kobe Premium Series

For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.

It is your sole responsibility to ensure the product is readily accessible for the service technician to perform repairs. The service technician will not, under any circumstance, remove, alter or modify any fixture built around and/or connected to the product to gain access to perform repairs.

Two-Year Limited Parts Warranty on Kobe Premium Series

More About Warranty

What is covered:

This warranty is valid in the United States and Canada. It is non-transferable and applies only to the original purchaser and does not extend to subsequent owner of this product. In Hawaii, Alaska and Canada, this warranty is limited. There may be additional shipping charges for parts and service technician travel costs in remote areas or location 30 miles outside of KOBE authorized service area.

What is not covered:

Normal wear and tear, regular service and maintenance required for the product.
Consumable parts such as light bulbs, filters, fuses, and oil cups.
Chips, scratches or dents due to abuse or misuse of the product, use of corrosive and abrasive cleaning products.
Damages caused by accident, fire, flood and other Acts of God.
Services in remote areas or locations 30 miles outside of KOBE authorized service area.
Labor cost incurred in connection with the removal of range hood, and reinstallation of replacement range hood, nor does it cover any other contingent expenses.
Scratches inside the hood, back of the baffle filter, and inside the duct cover.

This warranty will be voided when:

Improper installation and failure to follow installation instructions.
Any repair, alteration, modification not authorized by KOBE.
Duct alteration, modification and connection.
Incorrect electric current, voltage or wiring.
Improper usage of the product such as commercially, outdoor or other usage other than its intended purpose which is residential indoor usage only.
Product is purchased from an unauthorized KOBE dealer.
Product is damaged due to negligence, misuse, abuse, accident.

If we determine that the warranty exclusions listed above applies or if you fail to provide all necessary documentation for warranty service, you will be responsible for all expenses associated with the requested service, including parts, labor, shipping, travelling, and any other expense related to the service request.

Downloads

Videos

Ducted Range Hood

Multi Style Range Hood

Recirculating Range Hood

Under Cabinet Style Range Hood

Wall Mount Style Range Hood

Island Style Range Hood

How To Calculate Proper Clearance Dimensions Of Your Kitchen Range Hood

Parametric Panel Technology by KOBE Range Hoods (Mesh Filters vs Parametric Panel)

KOBE Under Cabinet Installation

KOBE Wall Mount Installation

KOBE Wall Mount Installation With Low Hood Body Height

Frequently Asked Questions

What is KOBE Rang Hoods warranty policy?

Premium: 2 Year Parts & Service

Deluxe: 2 Year Parts, 1 Year Service

Brillia: 2 Year Parts, 1 Year Service

**INX29 series comes with 2 Year Parts & 0 Year Service

After the warranty is over, can I still get parts for my KOBE range hood?

Yes, please contact KOBE customer service for the parts you need. Have all information on hand before contacting customer service (model number, serial number, & part number).

Can KOBE hood be used outside of the United States or Canada?

Yes, but please change the power voltage and plug for the range hood to be suitable at your region. However, warranty does not apply.

Is KOBE hood certified?

KOBE range hoods is CSA (U.S.A & Canada) and ETL (U.S.A & Canada) approved.

Does KOBE hood range hood include a damper?

Yes, most of KOBE range hoods come with a damper installed.

Can I vent my hood through the side of the house, instead of through the ceiling?

Yes, but please make sure that the ductwork attached to your KOBE range hood is at least 12 inch high before the 90º elbow turn to the wall.

What is the maximum length that I can vent my range hood?

The maximum length will be 50 feet (depending on model and installation).

Why can't the KOBE range hood be more than the required height from the cooking surface?

The required distance is the optimal distance between the hood and the cooking surface. KOBE range hood is powerful enough so it can be installed at a minimum of 26" for under cabinet and wall mount, and 30" for island hood. Any higher than the required height the effectiveness of the range hood will be reduced.

How far does the hood have to be above the cooking surface?

The recommended distance from the bottom of the range hood to the cooking surface is 26"~30" for under the cabinet and wall mount style hoods, 30"~36" for island hoods and 30"~36" for Dual Blower (1200 CFM) hood (accept Built-In hoods).

About Service

What type of blower system KOBE uses?

KOBE uses 2 types of blower systems to maximize CFM and filtration while minimizing noise and power consumption. The types of blower systems used are Twin Vertical Turbine Impeller and Single Horizontal Squirrel Cage.

What is Parametric Panel?

A parametric panel increases static air pressure by limiting airflow space. Panel may be opened or removed to access the filters for cleaning purposes. Parametric panel apply to KOBE Brillia CHX30 Series only.

What is Multi-Style hood?

Multi-Style hood can be installed as an under cabinet or a stand alone wall mount. This versatile feature gives the freedom to install the range hood in any kind of kitchen setting without limitation. (Duct cover is included in wall mount hood only).

What is ECO mode?

ECO Mode promotes a cleaner kitchen air quality without the work of manually turning the range hood on or off. KOBE’s Eco Mode features an automatic mechanism that runs the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odor.

What is QuietMode™ mode?

QuietMode™ feature allows the range hood to operate on the lowest CFM at a reduced sound level of 40 Decibels (1 Sone). Allowing the user to effectively vent the kitchen without the noise a typical range hood generates.

What is the difference between Premium(-1) and Deluxe(-5)?

The difference between Premium and Deluxe models lies in the CFM (cubic feet per minute). Premium models have higher CFM due to a more powerful blower while Deluxe models have lower CFM. Premium models also come with a 2 Year Parts & Labor warranty while Deluxe models come with a 2 Year Parts & 1 Year Labor warranty.

What is the difference between Premium/Deluxe and Brillia?

Warning: The answer below is generalized and may not apply to certain models. For more accurate product information, please see the product spec sheet or the product manual.

Premium and Deluxe lines represent the top of the line of KOBE Range Hoods. Models from these lines typically include more functions and features such as 4-6 fan speed, multi-level lighting, LED display, electronic buttons, 3 minute delay shutoff, and ECO Mode. Despite having the same material quality, Brillia line is more economical because it offers limited, basic functions.
