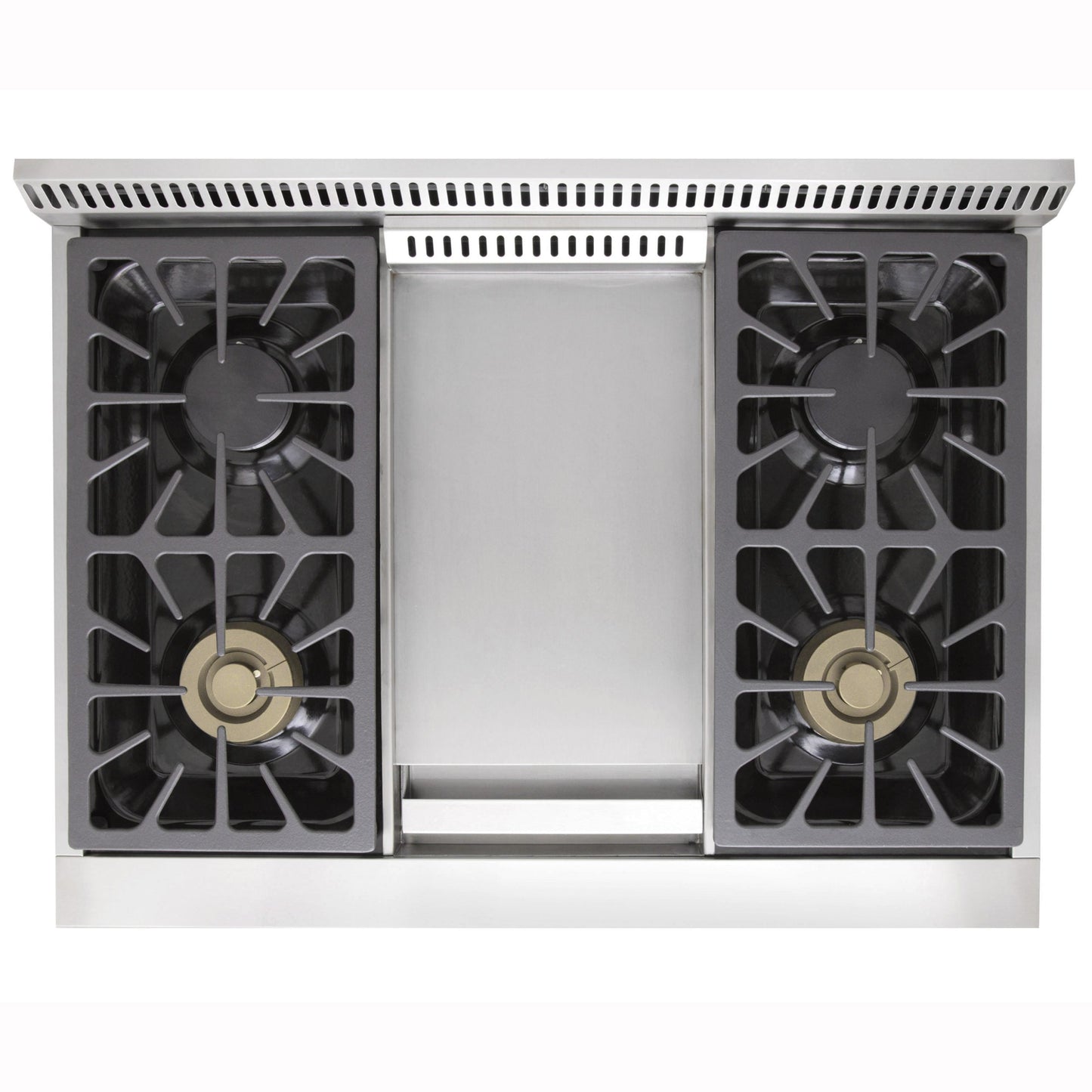

4 Burners and 1 BTU Griddle	2 x 15,000 BTU dual burners with simmer 2 x 12,000 BTU burners 1 x 18,500 BTU Griddle

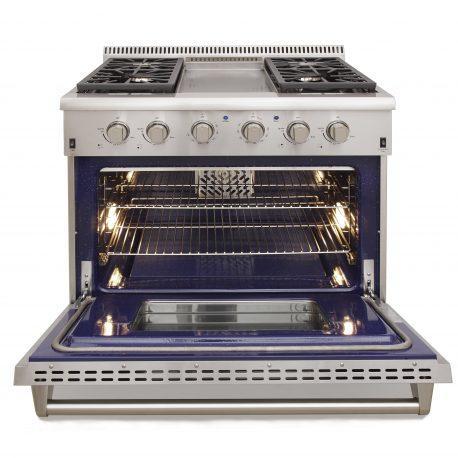

Oven	5.2 Cu. Ft. Oven 22,000 BTU Convection Oven 16,500 BTU Infrared Broiler Blue Porcelain Oven Interior Heavy duty oven fan 2 Halogen Lights
4" Stainless Steel Backsplash	4" Stainless Steel Backsplash. Solid built backsplash that looks even better on the range.

Not Included

Wok Stand

Professional accessory to use a wok in your kitchen.

Details
Gas Type	Natural Gas
Includes Broil Pan	Yes
Lights Inside Oven	2 Halogen Lights
Glass Window	2 Layers
Oven Racks	2 Racks
Fixture Legs	Fully Adjustable Heavy-duty Legs
Oven Control	Manual
Ignition	Electronic Ignition with Auto Re-ignition
Operation	Manual Convection Cooking Mode
Warranty	4 Years with Unlimited Lifetime Online Support
Design
Top Finish	Black Porcelain
Oven Interior Finish	Blue Porcelain

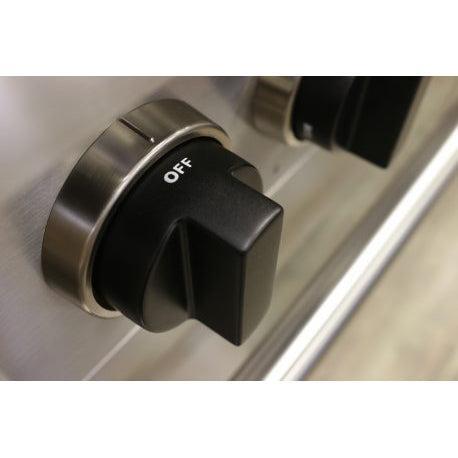

Knobs Quality/Finish	Premium Quality Metal Control Knobs (Tuxedo Black)
Oven Window Size	Extra Large Oven Window
Cast-Iron	Heavy Duty Cast-Iron Cooking Grates
Backsplash	4” Stainless Steel Backsplash
Side Panels	Full Stainless Steel Side Panels
Handle Type	Professional Handle

Surface Burner Ignition To light the top burners, push and turn the appropriate control knob counter clockwise to the “HI” position. You will hear a clicking noise – the sound of the electric spark igniting the burner. Once burner ignition has been achieved, then turn the burner control knob to adjust the the desired heat setting. NOTE: When one burner is turned to the "HI" position, the burner igniters will park. Do not attempt to disassemble or clean around any burner while another burner is on. Do not touch any burner cap, burner base, or igniter while the igniters are sparking. Simmer and Boil A smaller flame will give the best simmer results. Small flames offer precise cooking performance for delicate foods, keeping food warm, melting chocolate or butter, and for cooking that need to cook over low heat for a long time. The highest (larger) flame settings provide the maximum heat that is available on your range. This setting should be used for heavy cooking loads such as water boiling or pasta cooking.

Oven Burner Use To light the oven burner, push and turn the appropriate control knob counter clockwise to the (150℉ - 500℉)position. You will hear a clicking noise – the sound of the electric spark igniting the burner. Once burner ignition has been achieved, then turn the burner control knob to adjust the the desired heat setting.

Broil Burner Use To light the broiler burner, push and turn the appropriate control knob clockwise to the broil position. You will hear a clicking noise – the sound of the electric spark igniting the burner. Keep pressing about 4 seconds until the burner ignition has been achieved.

Dimensions and Finishes
Overall Height	36" (40" with backsplash)
Overall Width	36"
Overall Depth	28-7/8"
Frame Finish	Stainless Steel
Knobs Material	Metal
Electrical Requirements	120V/60Hz/15 or 20A

Orifice Sizes

4-Year Warranty for Parts and Labor

The main objective of KUCHT is to meet the needs and expectations of Kucht customers. For this reason, all Kucht products are subjected to rigorous security and quality controls to be above the North American safety standards.

KUCHT Warranty covers defects in Parts and Labor for functional parts that are the result of normal usage for a period of time of 4 Years for Parts and Labor* from date of purchase. Functional parts are those components parts that are critical to the performance of the product\’s essential function. Nonfunctional parts are those that are not critical like knobs, handles, or cosmetic parts. KUCHT will repair or replace the unit or any parts, therefore, as required, subject to these terms and conditions.

Unlimited Lifetime Online Support

In addition, KUCHT give full unlimited lifetime support. This means that if Kucht customers come across any problem after the warranty has expired, a qualified Kucht member will assist you or your trusted technician using video chat in any repair process. You will also have access to repair videos, tutorials, manuals, and any extra help that is available.

More About Warranty General Conditions: a. Warranty does not cover failure as a result of misuse, abuse, rust or corrosion, spilled liquids or foreign objects found inside the unit; repair of damage caused by accident, theft, fire, flood, external causes such as, but not limited to, blow fuses, inadequate electrical power, water and gas lines beyond the equipment, or any use of the product not authorized by the manufacturer. b. The maximum liability of the warranty for product replacement or repair shall not exceed the original purchase price of the product. c. KUCHT reserves the right to repair or replace the covered product with a comparable feature model of like kind. d. Warranty does not cover deterioration of the appearance of the product, any cosmetic part such as paint, porcelain, glass, dents, scratches, chips, rust or peeling. e. Any damage resulting from unauthorized replacement parts, improper service, or modifications made to the covered product are not covered. f. KUCHT is released from all liability due to indirect, consequential, or incidental damages. g. This warranty does not cover any damage to the product due to lightning, over-voltage, under-voltage, accident, misuse, abuse, negligence, or any damage caused by the use of the product by the purchaser or others. This warranty does not cover non-EWP products that have been exposed to wet or corrosive environments. This warranty does not cover stainless steel surfaces that have not been properly maintained. Limit of Liability: Kucht Liability is limited to the original price of the covered equipment. To Arrange for Service: Prior approval from Customer Service is required prior to start the service. To initiate a service claim please Submit a Ticket or contact KUCHT for assistance on how to initiate a service claim. Please have your original bill of sale and Serial Number of the unit available so Kucht customer service representative is able to quickly arrange for service. Warranty Exclusions The Kucht LLC Limited Warranty covers residential installations only and is non-transferable to any other party. Warranty is void when the product is installed in common areas where more than a single party has rightful access to its use or in locations considered beyond normal residential use. Warranty does not apply to products installed in any commercial or non-residential application. Examples of excluded applications include, but are not limited to day care centers, schools, bed and breakfast centers, churches, private clubs, fire stations, club houses, common areas in multi-family dwellings, restaurants, bakeries, hotels, nursing homes, food service locations and institutional food service locations.

• Installation Guide & User Manual
• Griddle Maintenance
• KRG3609U Parts Diagram
• 3D CAD File (DWG)
• 3D SketchUp File (SKP)

Kucht Flame Adjustment

Ignition with Auto Reignition Features

How to Replace Knobs

How to replace or remove Oven Door

How to convert KRG Series from Natural Gas to Liquid Propane Gas

What is the warranty for the products? All KUCHT products carry 4 years warranty for labor in the U.S. (2 years in Canada). You can read more about Kucht warranty and how to initiate a service claim in the unlikely event of a malfunction under Warranty Section.

Can the range be converted to LP gas (Propane Gas) or Natural Gas? Yes, all Kucht ranges can be converted to LP (Propane) gas or Natural Gas and Kucht have the conversion LP/Natural Gas kit available for all Kucht models.

Where are these ranges from? Kucht products are made with the finest sourced parts from all over the world. Italy, Spain, Germany, the USA, China are just some of the wide and varied vendors Kucht use in choosing the parts for Kucht ranges and appliances.

What are the standards for quality and security for your products? All Kucht models are CSA approved, meaning Kucht products are all well within Canadian and USA standards. For example, all Kucht ranges and hoods are submitted to Quality Controls when they leave their manufacturing facility and yet another Quality Control on arrival in Kucht facility in Paterson NJ. Dual Quality Control for all Kucht products enables us to make sure you’ll be receiving the very best KUCHT has to offer!

What does Electronic Ignition with Auto Re-ignition mean? It is a safety feature used to start the sparking device again if the flame goes out while the burner is still supplying gas. Wind gusts, vibration, gas line flow interruptions are all common causes for the temporary flame interruption.

I see many of your competitors are using computer-driven displays and electronics in their ovens and ranges. Why don’t I see these on your models? Simple – they do nothing to help you cook and create delicious foods. They sometimes don’t give accurate readings, and they lock the user into a false sense of security. Plus, electronics and high heat don’t mix well. When the electronics stop working, you are basically left with a very expensive cooking dud on your hands. Fixing any problems is both costly and time-consuming as well. Kucht ranges are made for cooking – not science fairs. If you look at any of the ranges professional chefs use in their kitchens, you almost never find electronic-driven models. That isn’t by accident!

Are Kucht ranges, ovens, and appliances easy to use? Yes, indeed! Kucht design products for the avid home chef – people who love to cook. They don’t want fancy gadgets – they want appliances that do the job, and do it well. In this respect, Kucht delivers!

Does simple design also mean no-frills when it comes to looks? Just the contrary! Kucht designed ranges and appliances to be both functional and fashionable. Kucht ranges all come with porcelain-coated ovens, as well as tops. Heavy-duty stainless steel, thick iron cooking grates… everything you expect in an upper-end appliance you’ll find in a Kucht. The moment you open your Kucht oven door you’ll instantly recognize the care Kucht put into each and every detail on Kucht ranges.

I see that your prices are remarkably lower than the other name brands – how can you offer such competitive prices? Great question! One reason is what Kucht mentioned above – Kucht use worldwide sourcing, and always strive to get the finest quality parts at the most reasonable prices. Now, this doesn’t mean Kucht look only at price. Kucht first and foremost want the parts and materials they use to be the best in class. Kucht then look for suppliers who can produce such quality pieces at reasonable and fair prices. Another reason is that they’re not charging you extra for a designer name. Just because an appliance has a particular corporate brand shouldn’t mean you must pay for their “vanity” trademark. They price Kucht appliances to be competitive, not exorbitant.

Why haven’t I heard of the Kucht name before? Because they’re the relatively new kids on the block! Kucht first opened for business in 2007. Since then, they've used Kucht resources in building the finest professional-grade appliances Kucht possibly could. Frankly, that did affect the funds available for marketing purposes. However, now that Kucht line of products is ready, Kucht fully intend to make Kucht the name of choice for the upper-scale home kitchen!

Does Kucht offer different models? Yes, they do. For example, Kucht currently offer different models of kitchen ranges, made to suit the discriminating needs and tastes of even the most advanced and demanding home chef.

Bottom Line – why should I purchase a Kucht? A fair question! In a nutshell, here’s why: Functionality – everything Kucht offer will work as promised! Quality – each piece Kucht build will last, and last, and last! Design – Your new appliance will simply look (and feel) great! Affordability – For a price not far above standard kitchen appliances, you can now own a professional-class model that will give you years upon years of cooking enjoyment!
