78CR556

LaToscana Cox Chrome Single Hole Deck Mounted Pull-Down Kitchen Faucet With Spring Spout

This standard single-hole, medium-arc, deck-mount faucet is perfect for any kitchen. This faucet is water efficient, lead free, ADA compliant and comes equipped with a ceramic disc cartridge. This LaToscana kitchen faucet is made with a solid brass construction and 100% exquisitely Italian made.

No one creates fashion and style like the Italians. Anyone can copy but few can create the design that says "YOU", so make your own statement in your bath or kitchen with LaToscana brand.

    Features

    • 20 1/8" spout height
    • 7 1/8" spout reach
    • 1 15/16" maximum deck thickness
    • 8" optional deck plate available
    • Flow Rate: 1.8 GPM @ 60 PSI
    • 360° Spout Rotation
    • Two Function Head – Spray and Stream
    • Single Hole Configuration
    • 100 % Exquisitely Italian Made
    • ADA Compliant
    • California compliant
    • Ceramic disk cartridges
    • Solid Brass Structured
    • Limited Lifetime Warranty
    • Optional 3-hole deckplate sold separately
    • Step-by-step installation instructions

    Codes & Standards

    • Compliant with ASME A112.18.1 - CSA B125.1
    • Compliant with ANSI/NSF 61
    • Certified by IAPMO R&T Lab
    • Meets EPA Water Sense Certification: 1.8 GPM @ 60 PSI
    • ADA Compliant

      Specifications

      Details
      Brand LaToscana
      Country of Origin Italy
      Model 78CR556
      Finish Chrome
      Flow Rate 1.8 GPM @ 60 PSI
      Spout Height 20 1/8"
      Spout Reach 7 1/8"
      Maximum Deck Thickness 1 15/16"
      Warranty Limited Lifetime Warranty
      Dimensions
      Product Dimensions 9.5"L x 4" W x 23.5" H
      Package Dimensions
      24" L x 10"W x 4" H
      Product Weight 10 lb
      Package Weight 12 lb

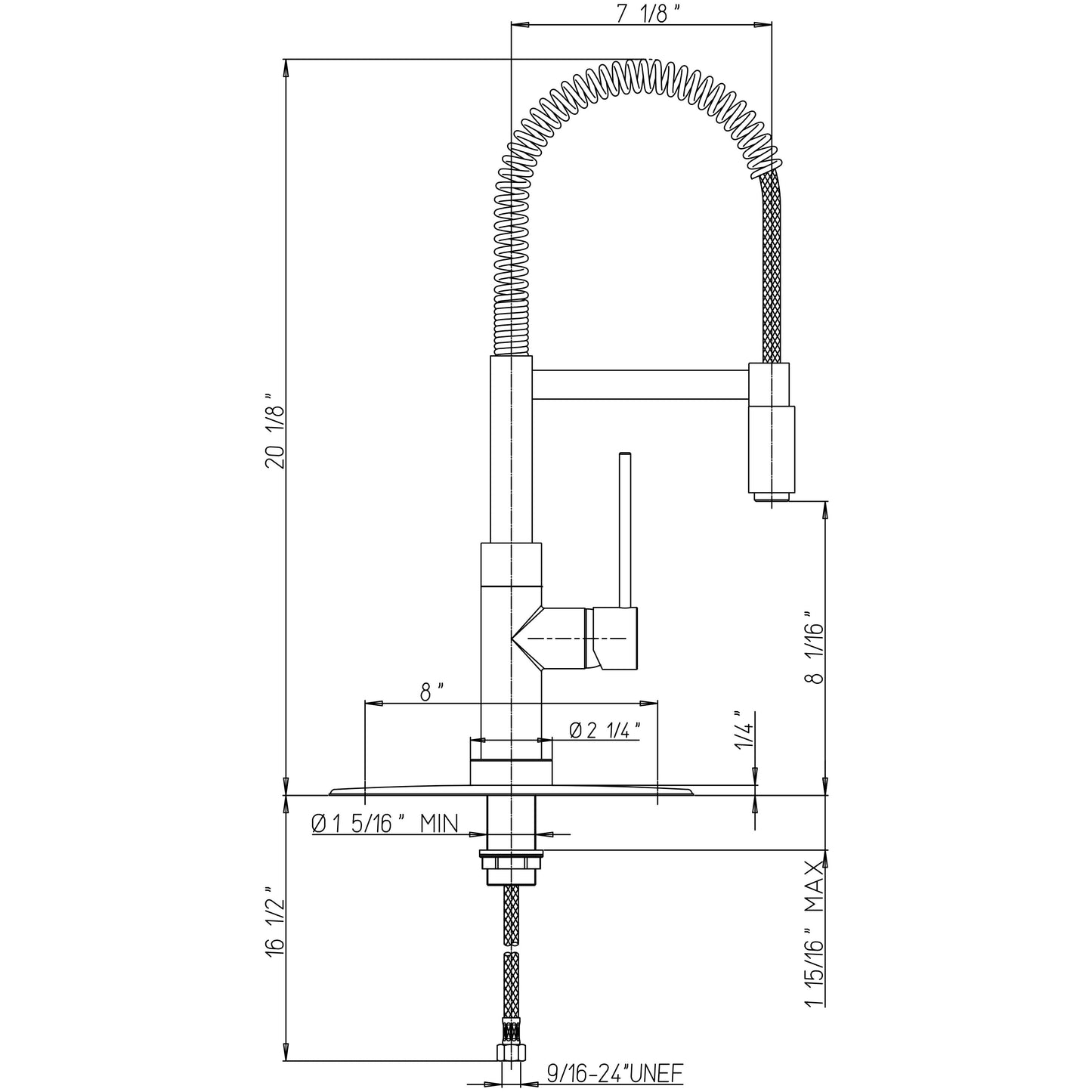

      Technical Drawing

      Warranty

      Limited Lifetime Warranty

      FINISHES - LaToscana warrants the products to be free from defects in materials. Warranty is limited as specified in each individual product's warranty card. Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to LaToscana for all limited warranty claims. This limited warranty is non-transferable. It does not apply in the event of product damage due to the use of other than genuine LaToscana replacement parts, installation error, abuse, misuse, or improper care and maintenance. Warranty shall not include problems related to the installation of the product.

      MECHANICS - A limited lifetime warranty is provided to the first residential owner on parts to be free from failure related to defects in materials and workmanship but not installation. Other components, including but not limited to sprayers and hoses have a one-year limited warranty.
