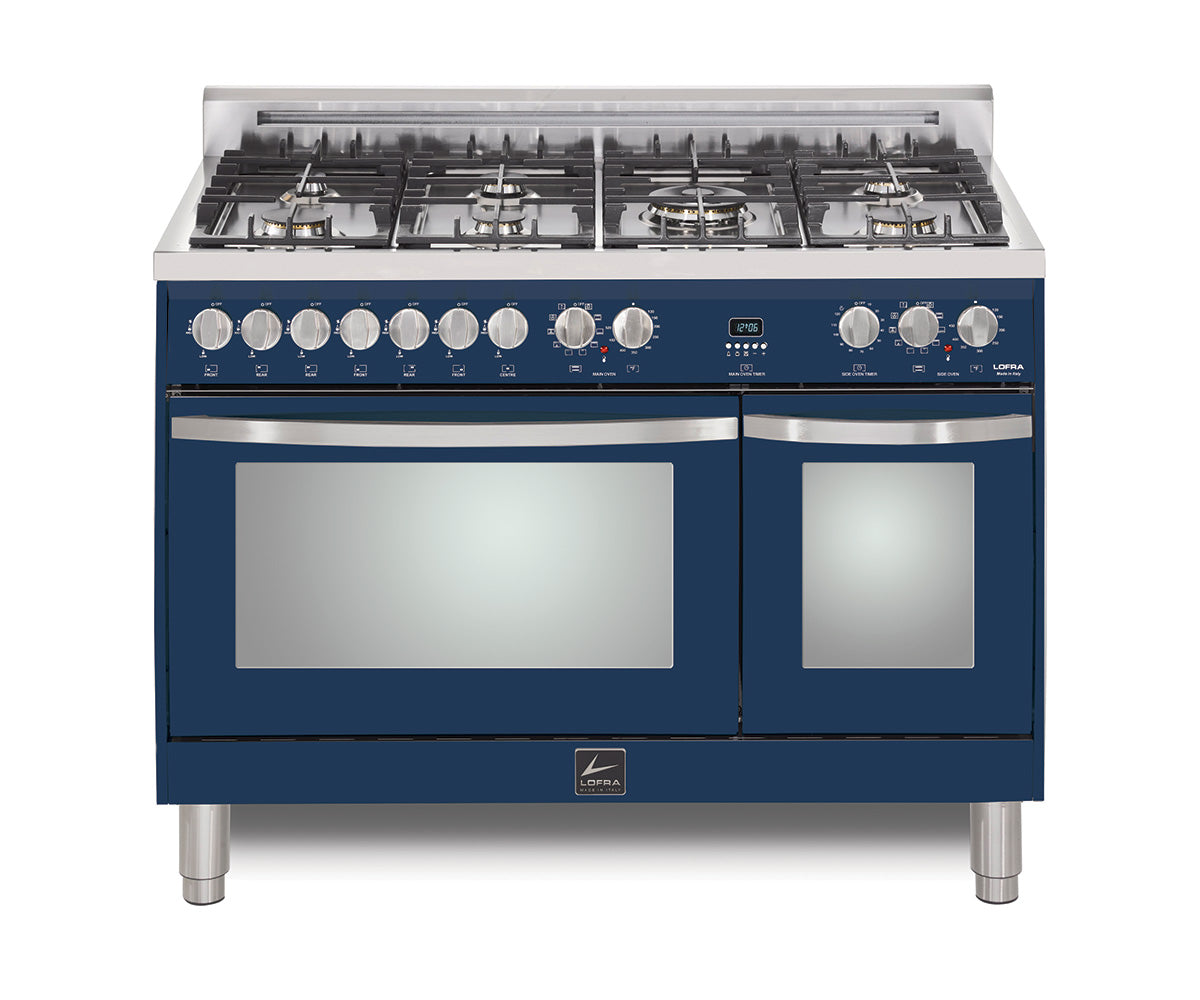

A patented and innovative design featuring a dynamic curved door and handle that represents the perfect union of tradition and modernity.

What's Included

• Liquid Propane Gas Conversion Kit
• 2 – Standard rack, position adjustable

• 1 – Glide rack, position stationary (main oven)

• 2 – Enamel drip broiler tray

Not Included (Sold Separately)

• Teppanyaki (steel griddle)

• Simmer plate

• Wok ring

• Ribbed cast-iron steak griddle

• Plinth toe-kick

• Color-matching side filler set

Features

Main Lufra Features

• REAL METAL KNOBS & HANDRAILS - Lofra’s quality is visible in every little detail including its signature knobs and handrails.

• TRIPLE TEMPERED GLAZED GLASS DOORS - Each oven door is built with three panels of glass, a design that keeps heat locked inside of the oven cavity and reduces the external surface temperature to ensure safety while also reducing energy consumption.

• BRASS BURNERS - Each Lofra semi-sealed burner provides efficiency for optimal cooking performance. Beautifully crafted and functional with cast iron burner caps and easily removed parts for cleaning and maintenance.

• TELESCOPIC SHELF SUPPORTS - Special guides allow for easy access for turning and basting while also adding protection against overturned trays.

• COOLING FAN - Lofra’s uniquely designed cooling fan system is designed to prevent hot air from damaging the range controls. Cold air enters the oven door from below and warm air vents out through an incorporated vent above the door handle.

• GREASE FILTER - The grease filter covers the primary convection fan and ensures that the oven cavity is always clean. The filter is easily removed for maintenance and cleaning.

Curva Features

Top

• Aisi 304 stainless steel top & back guard

• 7 brass burners and matte black burner caps (1 dual crown burner)

• One-Touch ignition

• Gas shutoff safety system

• Heavy-duty cast iron grates & burner caps

Main Oven

• Large multifunction convection oven: 9 cooking modes

• Full-width Broil element

• Bake element

• True European convection

• 2 oven lights

• 3 panel, removable glass oven door

• Easy removable glass for cleaning

• 1 telescopic glide shelf installed

• 1 enamel oven drip tray

• Ventilated doors with Cooling System

• Height adjustable stainless steel legs

Side Oven

• Large multifunction convection oven: 9 cooking modes - Bake, Bottom Bake, Upper Bake, Broil, Maxi Broil, Convection Bake, Convection Broil, Defrost, Pizza, Fan Assist
• Full-width Broil element

• Bake element

• True European convection

• 1 oven light

• 3-panel, removable glass oven door

• Easy removable glass for cleaning

• 1 heavy-duty oven rack

• 1 enamel oven drip tray

Specifications

General Specifications

Cooktop Specifications

Oven Specifications

Cutout Dimensions

Technical Drawings & Dimensions

Cooktop Configuration

1. Front Left – Rapid (R)
2. Rear Left – Auxiliary (A)
3. Central Front Left - Semi-Rapid (SR)
4. Central Rear Left - Semi-Rapid (SR)
5. Central Right – Double Crown (DC)
6. Rear Right – Semi-Rapid (SR)
7. Front Right – Rapid (R)

Warranty

2 Years Parts & labor within policy

Documents & Files

• Lofra Catalog
• User Manual
• Installation Manual
• Specification Sheet
