The RTA Store SW-B30FH + 2 DEP

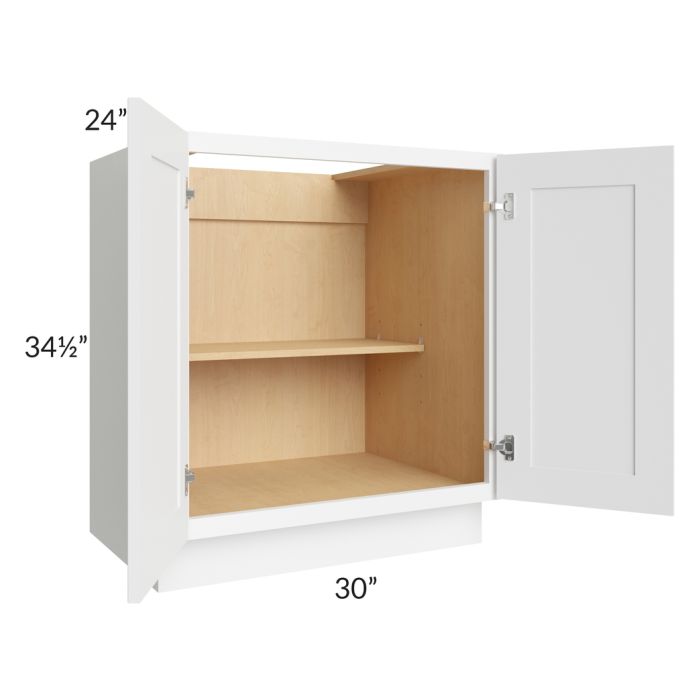

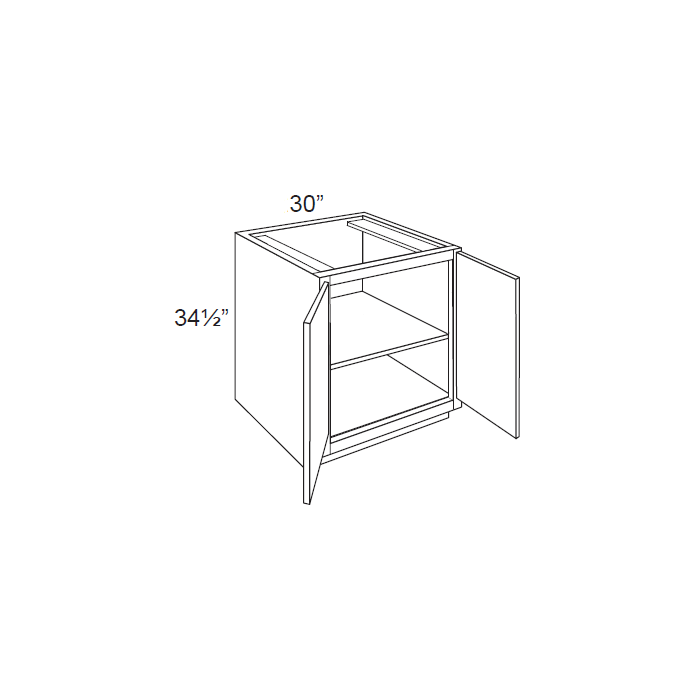

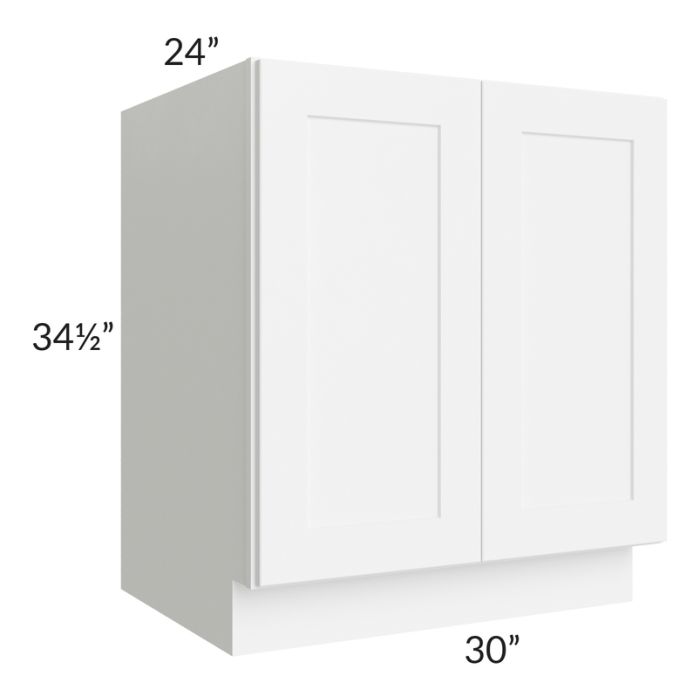

RTA Brilliant White Shaker 30" Full Height Door Base Cabinet with 2 Decorative END Panels

RTA Brilliant White Shaker 30" Full Height Door Base Cabinet with 2 Decorative END Panels

Regular price $1,599.99
Regular price $0.00 Sale price $1,599.99
Sale Sold out
✔ Free Shipping on Orders Over $300
✔ Same-Day Order Processing

Got a question?
• Text or call 800-814-9816
• Email
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Brilliant White Shaker collection offers a beautiful, sophisticated look to any style kitchen. The cabinets feature a full overlay, recessed door and drawer design, and soft close doors and drawers. This timeless design is sure to please everyone's taste.


  • 2 door base cabinet with 2 full height doors and 1 shelf.
  • A regular 30" base cabinet with a drawer will be shipped in addition to a full height face frame and doors.
  • The face frame, doors and drawer box that comes with the 30" cabinet can be discarded and the full height face frame and doors will be installed on the cabinet box.
  • With 2 Decorative END Panels


Item Number SW-B30FH + 2 DEP
Style Shaker
Face Frame 3/4" x 1-3/4" Birch
Door Frame Premium HDF (HDF is used to avoid cracking/warping)
Door Center Premium HDF (HDF is used to avoid cracking/warping)
Sides 1/2" A-Grade Plywood
Top & Bottom (Wall) 1/2" A-Grade Plywood
Bottom (Base) 1/2" A-Grade Plywood
Back Panel 1/2" A-Grade Plywood Full Back
Shelves Adjustable 3/4" w/Front Edge Banding
Base Cabinet Shelf Depth 44928
Drawer Box 5/8" solid hardwood, dovetailed drawer box, 5/16" Plywood Drawer Box Bottom, 5-Piece drawer front construction
Drawer Glides Undermount, Full Extension, Soft Close Glides
Base Corner Supports 3/4" Solid Wood Corner Blocks
Overlay Full
Hinges 6-way Adjustable, Concealed, European Soft Close Hinges
Cabinet Interior UV Coated Natural Interior (Prepped-for-glass cabinets will be finished to match the cabinet fronts)
Center Stile None (unless listed in the cabinet description)
Assembly Method Metal Clip or Glue & Staple: Cabinets come with Metal Clips (Cleats - not already installed on the cabinets) that can be used to assemble or the cabinets can be Glued and Stapled. If Staple & Glued, clips will not be used
Finish 7 step, acid-catalyzed finish process with a UV coating
Toe Kick 1/2" Plywood
Installation Rail None
Wall Cabinet Bottoms Finished (Exterior) Yes
CARB Compliant Yes
Door Hinges Doors come pre-drilled for the hinges, the face frame has marks where to drill and the customer chooses Right or Left during assembly.
Toe Kicks Included w/Base Cabinets Yes, but there will be a small gap when two cabinets are side by side, so the TKC (8' toe kick) is needed if cabinets are next to each other.
Sides Panels Finished Yes
Installation/Design Note Cabinet specs are subject to change without notice. *Cabinet measurements are typically converted from metric to inches and manufacturers will commonly round up to the nearest 1/4 inch. This can cause a measurement to be off by a fraction of an inch (less than 1/4") which is within normal industry standards*
Width 30"
Height 34 1/2"
Depth 24"
