U-Chill is an in-counter cooling cylinder designed to keep wine and beverages chilled during enjoyment.
Take a cold bottle from your refrigerator or Wine Captain®, put it in your U-Chill and touch the crown. That’s it. This product is designed to keep your beverage within 2-4ºF of opening temperature while you drink it.
No drips, no mess, and no maintenance. Just a perfectly chilled beverage.

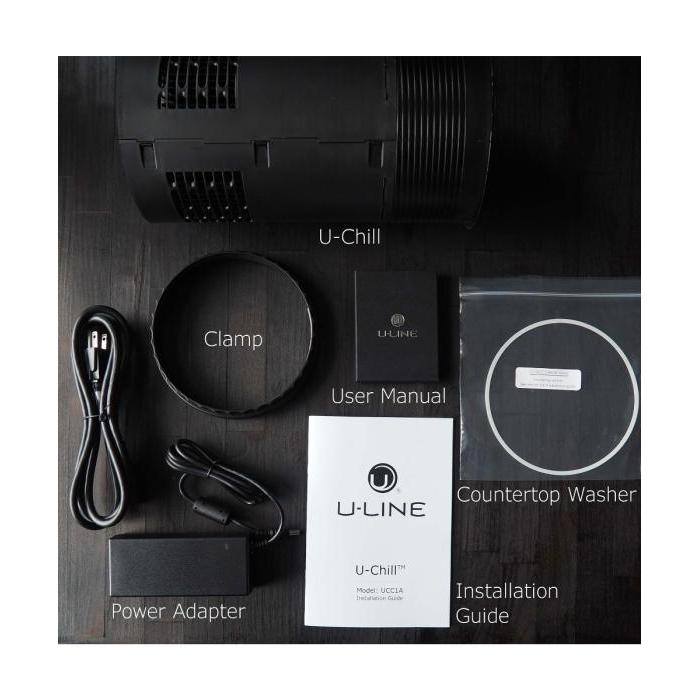

• U-Chill
• Clamp Washer
• Power Adapter/Installation Manual/User Guide

Features

• Smart-Touch Crown
  • Control with just a touch
  • Hand-polished marine-grade stainless steel (316L)
  • Powers off automatically after 4 hours
• Simple Installation
• Installs in 6" diameter opening in surfaces from 1/16” to 2-1/2” thick
• Plugs into standard 115V outlet (50/60 Hz)
• AC/DC adapter included
• Width: 6-5/16”
• Height:11-13/16”
• Interactive LED Lighting
• 27 different color options
• Optional color-flow setting
• Patented Kryolux™ Technology
• Dry cooling - no ice, no water
• Cold jacket of air surrounds your beverage
• Optimal ambient temp. range: 50°F-90°F
• Kryolux™ is a registered trademark of Kaelo LTD.
• Maintains temperature of bottle with 2°F - 4°F
• Limitless applications: Outdoor (covered), kitchen, movie room, wet bar, dining room, hospitality, etc
• Plugs into standard 110 outlet, requires 6” hole

Specifications

Model	UCC1A
Color/Finish	Stainless
Door Swing
Shipping Weight	7lb
Adapter Input Voltage	100 to 240V AC, 2.5A, 50-60Hz
U-Chill™ Input Voltage	12 volts
Max Power Usage	75 watts
12v DC Amps Auto	7 amps
Switch Off Ambient	4 hours without reactivation
Ambient Temperatures	50ºF to 90ºF / 10ºC to 32ºC

Should you experience any quality or performance issues within 2 years of purchase, we will repair or replace your product for free. The warranty does not cover damage resulting from accidents or abusive use.

Documents & Files

• Product Brochure
• U-Chill Installation Guide
• U-Chill User Guide
