Valpro 72 cu.ft. Merchandiser Double-Volt Freezer With 3 Swing Full Glass Doors
Valpro 72 cu.ft. Merchandiser Double-Volt Freezer With 3 Swing Full Glass Doors
✔ Same-Day Order Processing
Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Our line of merchandisers utilize reliable energy efficient technology and provide an attractive well illuminated point of purchase while maintaining precise temperatures. Triple pane full glass doors imparts an esthetic modern design to showcase illuminated contents while delivering cost saving eco-friendly energy efficiency. All Valpro products are manufactured under strict ISO9001 standards for quality assurance, and to consistently deliver to our customers products that satisfy all expectations. All our products are operated, extensively monitored, and undergo rigorous inspection prior to packaging and shipping.
Features
- Energy-saving vacuum-insulated triple pane low E-glass heated doors with heat-reflecting film
- Bright LED full door-length internal cabinet lighting
- Bright LED back-lit front panel
- Standard door locks for added security
- Self-closing doors remain open past 90° feature
- White baked enamel steel exterior, with white baked enamel aluminum interior and 304 stainless steel floor
- Twelve heavy-duty wire shelves supported by pilasters for easy adjustability’, 1/2” increments
- Six 1” wheels with front leg levelers
- High-density foamed-in-place CFC-free polyurethane insulation
- Front-mounted electronic thermostat digitally controlled temperature system maintains optimum temperature with easily viewed LED display
- Removable bottom grill slide-out condensing unit for easy maintenance
- Automatic defrost and condensate evaporation system
- Oversized balanced refrigeration system uses double voltage 115/208-230/60/1 with NEMA L14-20P plug
- Energy Verified and ETL sanitary certified to conform with NSF Standard 7
Specifications
Dimensional Data
Net Weight | 705 lbs. |
Exterior Dimensions | 81”W x 33.5”D x 79.5”H |
Interior Dimensions | 76.4”W x 27.6”D x 53.2”H |
Net Capacity Storage | 72 cu. ft. |
Refrigeration Data
Temperature Range | -10°F to +10°F |
Refrigerant | R-290 |
Refrigerating System | Capillary Tube |
Temperature Controller | Digital |
Horsepower | 1/1-4 |
Construction Data
Exterior Material | White Baked Enamel Steel |
Interior Floor Material | 304 Series Stainless Steel |
Interior Wall Material | White Baked Enamel Aluminum |
Insulation | CFC Free Polyurethane |
Shelves | 12 Heavy Duty Epoxy Coated |
Electrical Data
Amps | 9 |
Voltage/ Frequency/ Phase | 115/208-230/60Hz/1 |
Plug Type | NEMA L14-20P |
Electrical Cord Length | 8 ft. |
Shipping Details
Carton Weight | 829 lbs. |
Carton Dimensions | 82.5”W x 35.8”D x 84.6”H |

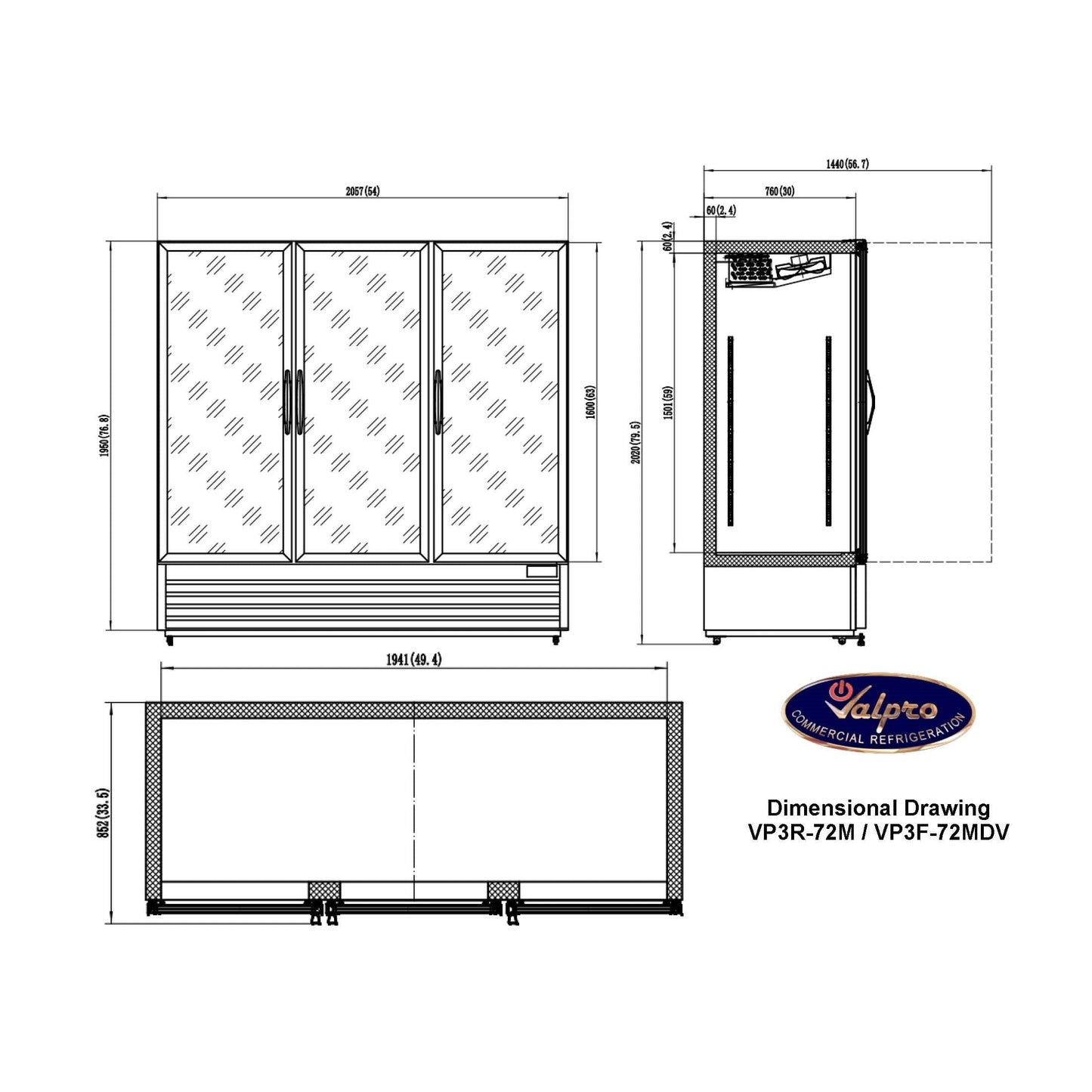

Technical Drawings
Warranty
2-Year Parts & Labor Limited Warranty | 5-Year Compressor Replacement Limited Warranty |
LIMITED ORIGINAL COMMERCIAL EQUIPMENT WARRANTY, TERMS & CONDITIONS
TWO-YEAR PARTS & LABOR LIMITED WARRANTYVALPRO warrants to the original purchaser of every new VALPRO unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by VALPRO, and upon proper installation (indoor only) and start-up in accordance with the instruction manuals supplied with the product. Regardless of actual installation date, the warranty start date shall be (24) months from original date of purchase or (27) months after shipment date from VALPRO, whichever occurs first. Any part covered under this warranty that is determined by VALPRO to have been defective within two (2) years after shipment date is limited to the repair or replacement, including labor charges, of defective parts or assemblies. Warranty is limited to one (1) year for food truck installations, and vehicle must be brought to service company for repair. VALPRO reserves the right to examine any product claimed to be defective, and deny payment for repair of said product deemed not defective. The labor warranty shall include standard straight time labor charges only and travel charges within 100 miles roundtrip. Any service requested outside of a servicer’s normal working hours will be covered under this warranty at the normal service rate. Warranty does not cover standard wear parts which include door gaskets, draw slides, and door hinges. Warranty parts ship ground service. Warranty also does not cover issues caused by improper installation or controller settings, abnormal use, damage by third parties, alterations or lack of basic preventative maintenance which includes regular cleaning of condenser coils and filters. Warranty service is limited to the continental United States. |
FIVE-YEAR COMPRESSOR REPLACEMENT LIMITED WARRANTYIn addition to the two (2) year warranty stated above, Valpro Commercial Refrigeration (Allied Manufacturing, Inc.) warrants its compressor to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years or (5) years from the shipment date. The three (3) year extended compressor warranty covers the compressor part only, and does not include any other parts, components and excludes labor charges involved with the replacement of the compressor. This (3) year extended compressor part warranty excludes food truck installations which is limited to (1) year parts and labor. The purchaser will have the sole responsibility and bear all expenses including removing and reinstalling the replacement compressor. The compressor failure must be verified by Valpro via a qualified service technician at the end user’s expense. Valpro reserves the right to have the “failed” compressor returned to the factory for inspection before issuing a warranty compressor part only. Compressor warranty is limited to 1 replacement compressor. This extended compressor warranty shall apply only within the continental United States. |
134A/404A/HYDROCARBON COMPRESSOR LIMITED WARRANTYThe compressor warranty detailed above will be voided if the following procedure is not adhered to:
|
WHAT IS NOT COVERED BY THIS WARRANTYValpro Commercial Refrigeration’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
Claims: All claims for parts or labor must be made directly through Valpro Commercial Refrigeration (Allied Manufacturing, Inc.). All claims need include: product model number, product serial number, proof of purchase with purchase date, and all pertinent information supporting the alleged defect. For warranty eligible compressor replacement the compressor tag must be returned to Valpro Commercial Refrigeration (Allied Manufacturing, Inc.) accompanied by the above listed necessary information. Any return authorizations shall be on the basis of transportation charges prepaid. A Valpro provided authorization number is required before the return of any parts or equipment. IN NO EVENT SHALL VALPRO COMMERCIAL REFRIGERATION (ALLIED MANUFACTURING, INC.) BE LIABLE FOR CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES. THE REMEDIES OF THE PURCHASER SET FORTH HERIN ARE EXCLUSIVE AND THE TOTAL LIABILITY OF VALPRO COMMERCIAL REFRIGERATION, WHETHER BASED ON CONTRACT, WARRANTY, NEGLIGENCE, INDEMNIFICATION, STRICT LIABILITY, TORT OR OTHERWISE SHALL NOT EXCEED THE PURCHASE PRICE OF THE COMPONENT UPON WHICH LIABILITY IS BASED. VALPRO COMMERCIAL REFRIGERATION SHALL HAVE NO OBLIGATION OR LIABILITY FOR CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO INDIRECT, PUNITIVE DAMAGES, LOSS OF USE, LOSS OF PRODUCT, DOWNTIME OR LOST PROFITS, ARISING OUT OR, RELATED TO OR CONNECTED IN ANY WAY WITH THE PRODUCT OR ITS USE. |
