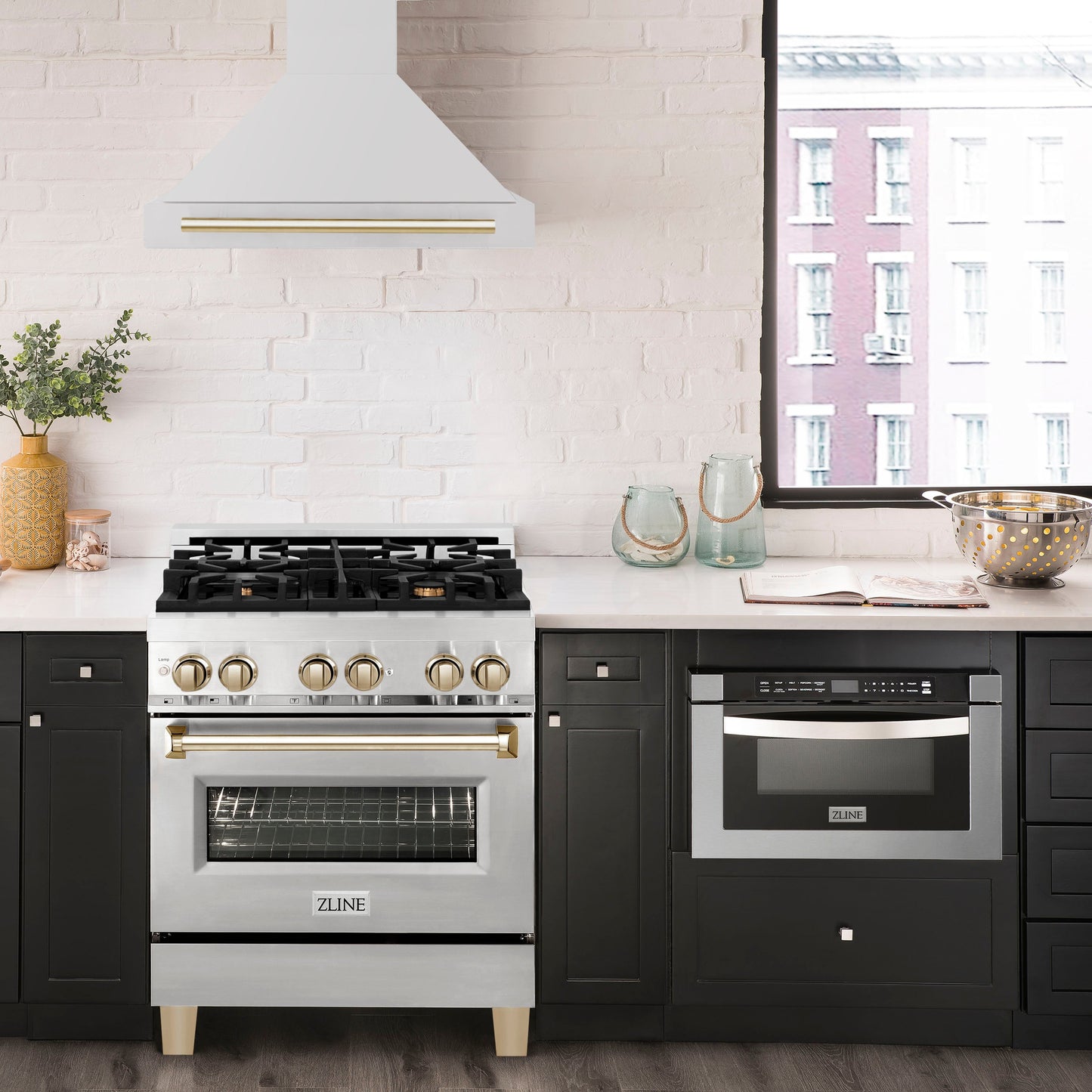

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with Autograph Edition accents, this sophisticated line of professional appliances brings a new meaning of elegance.
Create an unforgettable kitchen unique to your style with an Autograph Edition handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including Champagne Bronze, Matte Black, and Polished Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
What's Included
Range Hood
Blower
Installation Kits
User Guide
Installation Guide
Features
Gold handle matches ZLINE Autograph Edition Range or Rangetop with CGold Accents
Easy-to-use push button controls let's you easily control fan speed and lighting
4-speed fan control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
400 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
Fixed vent with ductwork that easily connects to the top of the range hood for external venting
Dishwasher-safe stainless steel baffle filters
LED lighting illuminates the cooktop beneath the hood
Designed to fit standard (circular) ductwork for simple installation
Handle is for cosmetic purposes only and should not be used for hanging items
3 year parts warranty, life-time motor warranty
Brushed 430 grade stainless steel
LIFETIME MOTOR WARRANTY Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
DISHWASHER SAFE BAFFLE FILTERS
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
BUILT-IN LED LIGHTING
Easily illuminate your cooking space with bright built-in LED lights
Specifications
PRODUCT WEIGHT
79
PRODUCT WIDTH
30
PRODUCT DEPTH
23.8
PRODUCT HEIGHT
16
PRODUCT DIMENSIONS
30 in. W x 23.75 in. D x 16 in. H
RH: SIZE (CLASSIC/PRO)
Professional
RH: MAX CFM
400 CFM
RH: REMOTE BLOWER
No
RH: OUTDOOR APROVED
Yes
RH: RECIRCULATING
No
Min Ceiling Height
7.7
Max Ceiling Height
9.5
Chimney Dimensions
13.25" W x 11.75" D x 35.5" H
Handle Dimensions
23.1" W x 0.8" D x 2.4" H
Range Hood Color/Finish
Stainless Steel
Material
Stainless Steel
Handle Finish
Gold
Watts
550
Voltage
110
Amps
5
Max CFM
400
Duct size (in.)
8
# of Speeds
4
Airflow (Q/L/M/H)
120/240/320/400
Decibels
51/55/58/61
Min Decibels
20
Max Decibels
41
Sones
0.6/1.1/1.5/2.5
Max Sones
2.5
Min Sones
0.6
Button Panel
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
# of lights
2
Filters
Stainless Steel Baffle Filters (Dishwasher-safe)
Motor
High Performance 400 CFM/4-Speed Motor
Warranty
3-Year Warranty on Parts
Limited Lifetime Warranty on Motor
Coverage
ZLINE warranty periods begin from the original purchase date of the product and solely cover the original purchaser of the product, delivered new and in its original carton. The limited warranty covers all parts and labor (if applicable) for necessary repairs if any part of the product, or the product itself, proves to be defective in materials or workmanship.
The product must be deemed serviceable via troubleshooting with the ZLINE Customer Service team. All service (if applicable) on ZLINE products under warranty must be performed by ZLINE-approved and ZLINE-certified service providers unless otherwise specified by ZLINE. Service will be provided during normal business hours. Products must be unobstructed and accessible to the service provider at the time of service.
ZLINE’s liability is limited to the original purchase price of the product. Additional injuries, losses, damages, or other inconveniences caused by product malfunction or defects in materials are not covered under the terms of this warranty.
Terms
ZLINE warranties apply only to the original purchaser of a ZLINE product installed for normal residential use. This is defined as a single-family, residential dwelling in a non-commercial setting. Any warranty claim stemming from installation, operation, or any other use within a commercial setting is not covered under this limited warranty. Commercial settings include, but are not limited to: schools, churches, hotels, restaurants, vacation rentals such as Airbnb, daycare centers, private clubs, fire stations, common areas in multi-family dwellings, nursing homes, food service locations, and institutional food service locations such as hospitals or correctional facilities.
This warranty is non-transferable and will not under any circumstance be extended based on the date of installation — the warranty period takes effect from the date of purchase and only covers the original purchaser. The warranty applies only to products installed in the contiguous United States and the District of Columbia.
Failure to secure certified warranty service (if applicable depending on the product) per these terms will result in a forfeiture of the remaining warranty. Out-of-pocket payments will not be reimbursed unless prior approval is received from ZLINE and/or ZLINE-certified service contract partners. Unapproved out-of-pocket payments for service will not be reimbursed. All warranty procedures must be followed to maintain warranty coverage.
If a product qualifies within the service window provided under these warranty terms, and ZLINE is unable to repair the product or a defective part of the product after a reasonable number of attempts, ZLINE reserves the right to offer to replace the defective part or the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).
The original purchaser of the product must provide the original proof of purchase, including the purchase date, when filing a claim to obtain replacement parts, service, or refunds. Additionally, the original purchaser of the product must provide the serial number of the product when filing a claim to obtain replacement parts, service, or refunds.
This warranty shall not apply to any ZLINE product in which the original factory serial number has been removed, altered, or cannot be readily determined for any reason. Further, ZLINE is not responsible for damage resulting from, but not limited to: shipment, delivery, or improper installation; negligence or improper maintenance, misuse, or abuse of the product; unauthorized alteration, modification, or tampering with the product; accident, fire, floods, pest infestations, pandemics, natural disasters, or any other unpreventable or unexplained acts of nature, commonly referred to as “acts of God”; flare-up fires or damages caused by improper electric supply, electrical line current, voltage, or power surges; and service to correct installation not in accordance with the instructions contained in ZLINE’s product manuals and/or with local government codes.
Please note: Information contained within ZLINE’s installation and user manuals, in addition to product information included on ZLINE’s website and all related digital listings, do not cover every possible condition and situation that may occur during the installation or operation of ZLINE products. ZLINE reserves the right to make changes at any time to its products when considered safe, necessary, and useful.
Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact Customer Service for help. Failure to report a damaged appliance prior to installation or operation may void the warranty.
ZLINE disclaims responsibility for damage or injury caused by improper installation or use of any of its products. ZLINE is under no obligation, by law or otherwise, to provide concessions, including repairs, prorates, rebates, discounts, or replacements, once the warranty has expired.
