Bring a new meaning of Attainable Luxury® to the center of your kitchen with ZLINE's Ducted Wall Mount Range Hood in Stainless Steel. This hood's high-performance, 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Enhance your kitchen experience with premium features, such as built-in LED lighting, dishwasher safe baffle filters, a powerful, yet quiet motor that eliminates all odors, grease, and smoke as well as a stainless steel accent handle.
ZLINE stands by the quality and durability of DuraSnow® Fingerprint Resistant Range Hoods, backed with a worry-free lifetime motor warranty and 3 year parts warranty. The 8654STX ships next business day when in stock.
What's Included
Range Hood
Blower
Installation Kits
User Guide
Installation Guide
Features
Easy-to-use push button controls let you easily control fan speed and lighting
4-speed fan control (280/420/560/700 CFM) let's you choose the appropriate air flow for your cooking situation
700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
Fixed vent with ductwork that easily connects to the top of the range hood for external venting
Dishwasher-safe stainless steel baffle filters
LED lighting illuminates the cooktop beneath the hood
Designed to fit standard (circular) ductwork for simple installation
Handle is for cosmetic purposes only and should not be used for hanging items
LIFETIME MOTOR WARRANTY Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
DISHWASHER SAFE BAFFLE FILTERS
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe

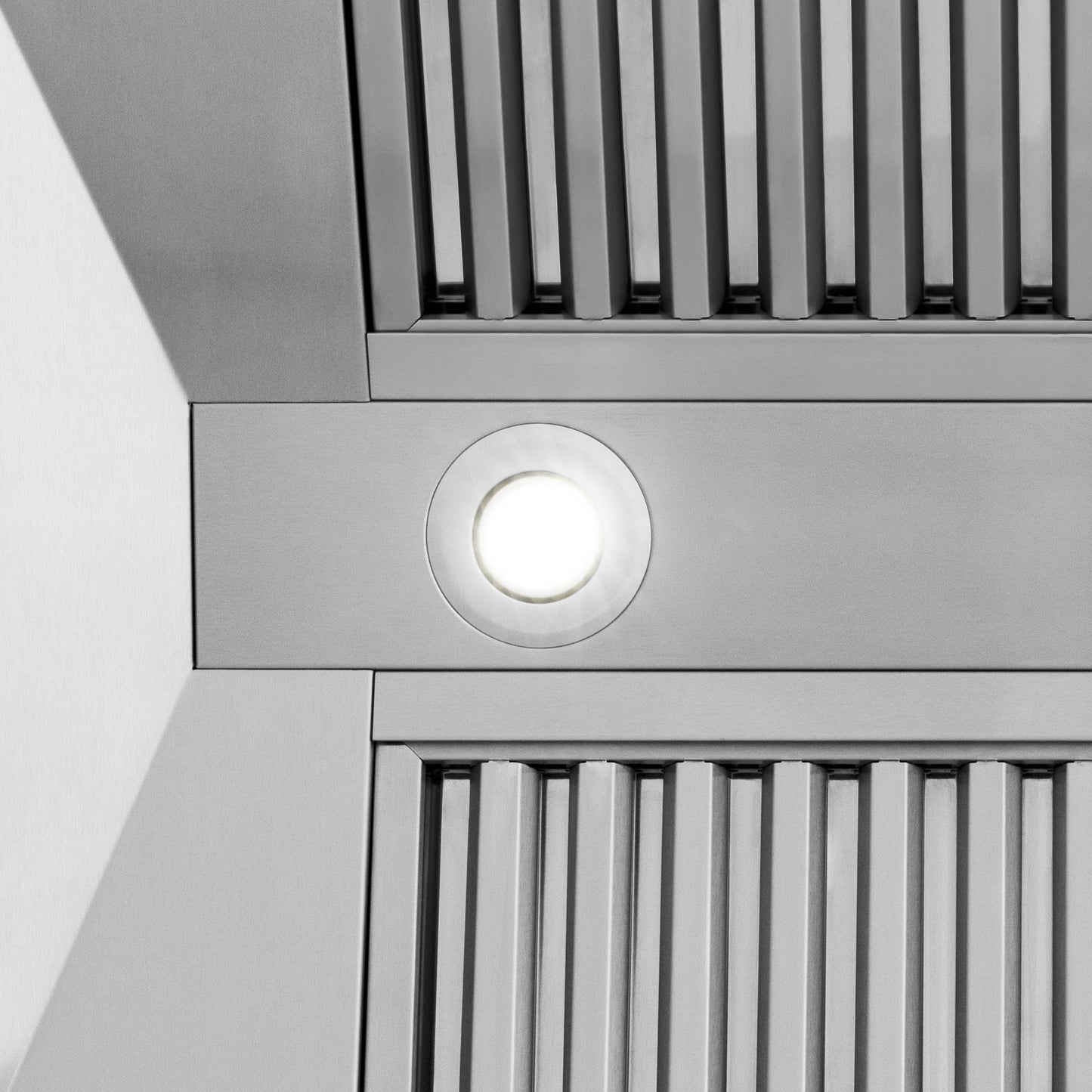

BUILT-IN LED LIGHTING
Easily illuminate your cooking space with bright built-in LED lights
Specifications
PRODUCT WEIGHT
90
PRODUCT WIDTH
48
PRODUCT DEPTH
23.8
PRODUCT HEIGHT
16
PRODUCT DIMENSIONS
48 in. W x 23.75 in. D x 16 in. H
SIZE (CLASSIC/PRO)
Professional
RH: MAX CFM
700 CFM
RH: REMOTE BLOWER
No
RH: OUTDOOR APROVED
Yes
RH: RECIRCULATING
No
Min Ceiling Height
7.7
Max Ceiling Height
9.5
Chimney Dimensions
13.25" W x 11.75" D x 35.5" H
Handle Dimensions
40.8" W x 0.8" D x 2.4" H
Range Hood Color/Finish
Stainless Steel
Material
Stainless Steel
Handle Finish
Stainless Steel
Watts
550
Voltage
110
Amps
5
Max CFM
700
Duct size (in.)
8
# of Speeds
4
Airflow (Q/L/M/H)
280/420/560/700
Decibels
51/55/58/61
Min Decibels
30
Max Decibels
52
Sones
1.1/2.5/4.3/5.3
Max Sones
5.3
Min Sones
1.1
Button Panel
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
# of lights
2
Filters
Stainless Steel Baffle Filters (Dishwasher-safe)
Motor
High Performance 700 CFM/4-Speed Motor
Warranty
3-Year Warranty on Parts
Limited Lifetime Warranty on Motor
Coverage
ZLINE warranty periods begin from the original purchase date of the product and solely cover the original purchaser of the product, delivered new and in its original carton. The limited warranty covers all parts and labor (if applicable) for necessary repairs if any part of the product, or the product itself, proves to be defective in materials or workmanship.
The product must be deemed serviceable via troubleshooting with the ZLINE Customer Service team. All service (if applicable) on ZLINE products under warranty must be performed by ZLINE-approved and ZLINE-certified service providers unless otherwise specified by ZLINE. Service will be provided during normal business hours. Products must be unobstructed and accessible to the service provider at the time of service.
ZLINE’s liability is limited to the original purchase price of the product. Additional injuries, losses, damages, or other inconveniences caused by product malfunction or defects in materials are not covered under the terms of this warranty.
Terms
ZLINE warranties apply only to the original purchaser of a ZLINE product installed for normal residential use. This is defined as a single-family, residential dwelling in a non-commercial setting. Any warranty claim stemming from installation, operation, or any other use within a commercial setting is not covered under this limited warranty. Commercial settings include, but are not limited to: schools, churches, hotels, restaurants, vacation rentals such as Airbnb, daycare centers, private clubs, fire stations, common areas in multi-family dwellings, nursing homes, food service locations, and institutional food service locations such as hospitals or correctional facilities.
This warranty is non-transferable and will not under any circumstance be extended based on the date of installation — the warranty period takes effect from the date of purchase and only covers the original purchaser. The warranty applies only to products installed in the contiguous United States and the District of Columbia.
Failure to secure certified warranty service (if applicable depending on the product) per these terms will result in a forfeiture of the remaining warranty. Out-of-pocket payments will not be reimbursed unless prior approval is received from ZLINE and/or ZLINE-certified service contract partners. Unapproved out-of-pocket payments for service will not be reimbursed. All warranty procedures must be followed to maintain warranty coverage.
If a product qualifies within the service window provided under these warranty terms, and ZLINE is unable to repair the product or a defective part of the product after a reasonable number of attempts, ZLINE reserves the right to offer to replace the defective part or the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).
The original purchaser of the product must provide the original proof of purchase, including the purchase date, when filing a claim to obtain replacement parts, service, or refunds. Additionally, the original purchaser of the product must provide the serial number of the product when filing a claim to obtain replacement parts, service, or refunds.
This warranty shall not apply to any ZLINE product in which the original factory serial number has been removed, altered, or cannot be readily determined for any reason. Further, ZLINE is not responsible for damage resulting from, but not limited to: shipment, delivery, or improper installation; negligence or improper maintenance, misuse, or abuse of the product; unauthorized alteration, modification, or tampering with the product; accident, fire, floods, pest infestations, pandemics, natural disasters, or any other unpreventable or unexplained acts of nature, commonly referred to as “acts of God”; flare-up fires or damages caused by improper electric supply, electrical line current, voltage, or power surges; and service to correct installation not in accordance with the instructions contained in ZLINE’s product manuals and/or with local government codes.
Please note: Information contained within ZLINE’s installation and user manuals, in addition to product information included on ZLINE’s website and all related digital listings, do not cover every possible condition and situation that may occur during the installation or operation of ZLINE products. ZLINE reserves the right to make changes at any time to its products when considered safe, necessary, and useful.
Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact Customer Service for help. Failure to report a damaged appliance prior to installation or operation may void the warranty.
ZLINE disclaims responsibility for damage or injury caused by improper installation or use of any of its products. ZLINE is under no obligation, by law or otherwise, to provide concessions, including repairs, prorates, rebates, discounts, or replacements, once the warranty has expired.
