ZLINE 520-42

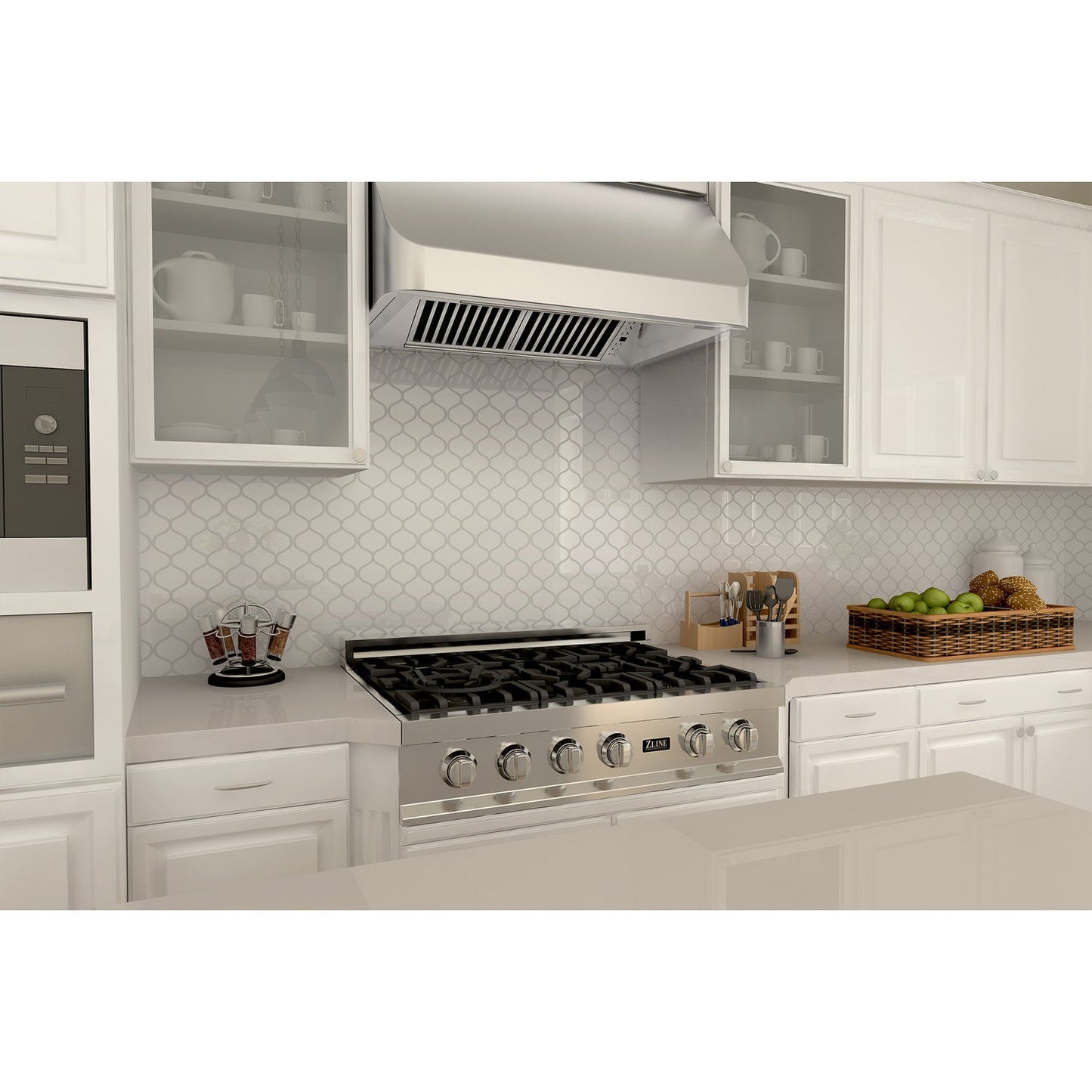

ZLINE 42" Stainless Steel Under Cabinet Range Hood

ZLINE 42" Stainless Steel Under Cabinet Range Hood

Regular price $1,299.95
Regular price $1,779.95 Sale price $1,299.95
Sale Sold out
✔ Free Shipping on Orders Over $300
✔ Same-Day Order Processing

Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

ZLINE 42 in. 600 CFM Under Cabinet Range Hood in Stainless Steel (520-42) has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel.

This hood's high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this range hood a simple, enjoyable experience for years to come.

ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. ZLINE stands by all products with its Manufacturer Parts Warranty.

What's Included

  • Range Hood
  • Blower
  • Installation Kits
  • User Guide
  • Installation Guide

Features

  • ZLINE Range Hoods blend superior performance with elegant design
  • 4 Fan Speed Settings let you choose the perfect air flow power for any cooking situation
  • LED Lighting beautifully illuminates your stove and adjacent counter-top areas
  • Countless variations in material & finish, size, and design let you find the perfect look for your kitchen

LIFETIME MOTOR WARRANTY
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty

Icon and image representing lifetime range hood motor warranty
DISHWASHER SAFE BAFFLE FILTERS
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Icon and image representing dishwasher safe range hood baffle filters
BUILT-IN LED LIGHTING
Easily illuminate your cooking space with bright built-in LED lights
Icon and image representing range hood with built-in LED lighting

Specifications

PRODUCT WEIGHT (lbs.) 85
PRODUCT WIDTH (in.) 42
PRODUCT DEPTH (in.) 24
PRODUCT HEIGHT (in.) 18
RH: SIZE (CLASSIC/PRO) Professional
RH: MAX CFM 600 CFM
RH: REMOTE BLOWER No
RH: OUTDOOR APROVED No
RH: RECIRCULATING Yes
Min Ceiling Height N/A
Max Ceiling Height N/A
Chimney Dimensions
Color/Finish Brushed 430 Stainless Steel
Watts 385
Voltage 110
Amps 3.5
Max CFM 600
Duct size (in.) 8
# of Speeds 4
Airflow (Q/L/M/H) 270/380/490/600
Decibels 20/29/34/41
Min Decibels 20
Max Decibels 41
Sones 0.6/1.1/1.5/2.5
Max Sones 2.5
Min Sones 0.6
Button Panel Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
# of lights 3
Filters Stainless Steel Baffle Filters (Dishwasher-safe)
Motor High Performance 600 CFM/4-Speed Motor

Warranty

3-Year Warranty on Parts
Limited Lifetime Warranty on Motor

Coverage

ZLINE warranty periods begin from the original purchase date of the product and solely cover the original purchaser of the product, delivered new and in its original carton. The limited warranty covers all parts and labor (if applicable) for necessary repairs if any part of the product, or the product itself, proves to be defective in materials or workmanship.

The product must be deemed serviceable via troubleshooting with the ZLINE Customer Service team. All service (if applicable) on ZLINE products under warranty must be performed by ZLINE-approved and ZLINE-certified service providers unless otherwise specified by ZLINE. Service will be provided during normal business hours. Products must be unobstructed and accessible to the service provider at the time of service.

ZLINE’s liability is limited to the original purchase price of the product. Additional injuries, losses, damages, or other inconveniences caused by product malfunction or defects in materials are not covered under the terms of this warranty.

Terms

ZLINE warranties apply only to the original purchaser of a ZLINE product installed for normal residential use. This is defined as a single-family, residential dwelling in a non-commercial setting. Any warranty claim stemming from installation, operation, or any other use within a commercial setting is not covered under this limited warranty. Commercial settings include, but are not limited to: schools, churches, hotels, restaurants, vacation rentals such as Airbnb, daycare centers, private clubs, fire stations, common areas in multi-family dwellings, nursing homes, food service locations, and institutional food service locations such as hospitals or correctional facilities.

This warranty is non-transferable and will not under any circumstance be extended based on the date of installation — the warranty period takes effect from the date of purchase and only covers the original purchaser. The warranty applies only to products installed in the contiguous United States and the District of Columbia.

Failure to secure certified warranty service (if applicable depending on the product) per these terms will result in a forfeiture of the remaining warranty. Out-of-pocket payments will not be reimbursed unless prior approval is received from ZLINE and/or ZLINE-certified service contract partners. Unapproved out-of-pocket payments for service will not be reimbursed. All warranty procedures must be followed to maintain warranty coverage.

If a product qualifies within the service window provided under these warranty terms, and ZLINE is unable to repair the product or a defective part of the product after a reasonable number of attempts, ZLINE reserves the right to offer to replace the defective part or the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).

The original purchaser of the product must provide the original proof of purchase, including the purchase date, when filing a claim to obtain replacement parts, service, or refunds. Additionally, the original purchaser of the product must provide the serial number of the product when filing a claim to obtain replacement parts, service, or refunds.

This warranty shall not apply to any ZLINE product in which the original factory serial number has been removed, altered, or cannot be readily determined for any reason. Further, ZLINE is not responsible for damage resulting from, but not limited to: shipment, delivery, or improper installation; negligence or improper maintenance, misuse, or abuse of the product; unauthorized alteration, modification, or tampering with the product; accident, fire, floods, pest infestations, pandemics, natural disasters, or any other unpreventable or unexplained acts of nature, commonly referred to as “acts of God”; flare-up fires or damages caused by improper electric supply, electrical line current, voltage, or power surges; and service to correct installation not in accordance with the instructions contained in ZLINE’s product manuals and/or with local government codes.

Please note: Information contained within ZLINE’s installation and user manuals, in addition to product information included on ZLINE’s website and all related digital listings, do not cover every possible condition and situation that may occur during the installation or operation of ZLINE products. ZLINE reserves the right to make changes at any time to its products when considered safe, necessary, and useful.

Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact Customer Service for help. Failure to report a damaged appliance prior to installation or operation may void the warranty.

ZLINE disclaims responsibility for damage or injury caused by improper installation or use of any of its products. ZLINE is under no obligation, by law or otherwise, to provide concessions, including repairs, prorates, rebates, discounts, or replacements, once the warranty has expired.

Documents & Files

Installation Guide
