ZLINE 8654SNZ-48-CB

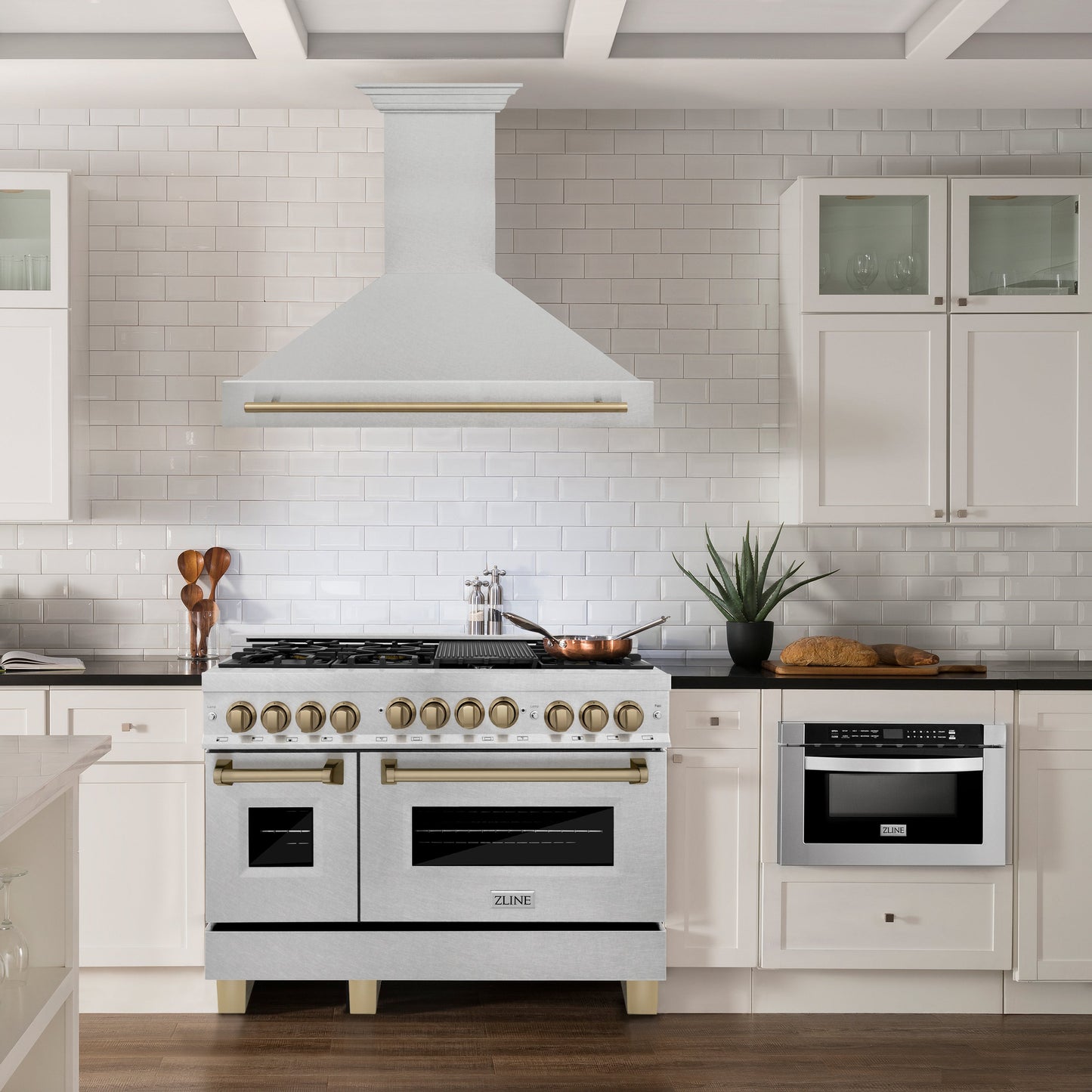

ZLINE Autograph Edition 48" Durasnow Stainless Steel 4-speed 700 CFM Range Hood With LED Lighting and Champagne Bronze Handle

ZLINE Autograph Edition 48" Durasnow Stainless Steel 4-speed 700 CFM Range Hood With LED Lighting and Champagne Bronze Handle

Regular price $2,299.95
Regular price $4,599.95 Sale price $2,299.95
Sale Sold out
✔ Free Shipping on Orders Over $300
✔ Same-Day Order Processing

Got a question?
• Text or call 800-814-9816
• Email support@kitchenoasis.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 48" DuraSnow® Fingerprint Resistant Stainless Steel Range Hood with DuraSnow® Fingerprint Resistant Stainless Steel Shell and Autograph Edition Handle provides a professional culinary experience by pairing unmatched performance with personalized touches. Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.

What's Included

  • Main Hood with All Lights and Button Banks Pre-Installed
  • Adjustable Stainless Steel Chimney Cover
  • Transition Piece (for 6” or 8”)
  • Baffle Filters
  • Packet of Screws and Anchors
  • Top Mounting Bracket
  • Grease Cup

Features

  • Champagne Bronze handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents
  • Easy-to-use push button controls let's you easily control fan speed and lighting
  • 4-speed fan control (280/420/580/700 CFM) let's you choose the appropriate air flow for your cooking situation
  • 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
  • Fixed vent with ductwork that easily connects to the top of the range hood for external venting
  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • Handle is for cosmetic purposes only and should not be used for hanging items
  • 3 year parts warranty, life-time motor warranty
  • Brushed 430 grade stainless steel

LIFETIME MOTOR WARRANTY
Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty

Icon and image representing lifetime range hood motor warranty
DISHWASHER SAFE BAFFLE FILTERS
Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe
Icon and image representing dishwasher safe range hood baffle filters
BUILT-IN LED LIGHTING
Easily illuminate your cooking space with bright built-in LED lights
Icon and image representing range hood with built-in LED lighting

Specifications

Ship Type LTL
Outbound Shipping: Box 1 Total Gross Weight (lbs) 82 lbs.
Outbound Shipping: Box 1 Length (in.) 30"
Outbound Shipping: Box 1 Depth (in.) 49"
Outbound Shipping: Box 1 Height (in.) 25"
Product Weight 90 lbs.
Product Width 48"
Product Depth 23.8"
Product Height 16"
Product Dimensions 48" W x 23.75" D x 16" H
RH: Size (Classic/Pro) Professional
RH: Remote Blower No
RH: Outdoor Approved Yes
RH: Recirculating No
Min Ceiling Height 7.7 ft.
Max Ceiling Height 9.5 ft.
Chimney Dimensions 13.25" W x 11.75" D x 35.5" H
Handle Dimensions 40.8" W x 0.8" D x 2.4" H
Range Hood Color/Finish DuraSnow Stainless Steel
Material Stainless Steel
Handle Finish Champagne Bronze
Watts 550 W
Voltage 110 V
Amps 5 Amps
Max CFM 700 CFM
Duct size (in.) 8"
# of Speeds 4
Airflow (Q/L/M/H) 280/420/560/700
Decibels 30/41/49/52
Min Decibels 30 dBa
Max Decibels 52 dBa
Sones 1.1/2.5/4.3/5.3
Max Sones 5.3
Min Sones 1.1
Button Panel Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
# of lights 2
Filters Stainless Steel Baffle Filters (Dishwasher-safe)
Motor High Performance 700 CFM/4-Speed Motor

Dimensions

Warranty

3-Year Warranty on Parts
Lifetime Warranty on Motor

We will provide free of charge, non-consumable replacement parts for the components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below at it’s option, either repair or replace any part of its products that prove defective by reason of improper workmanship or material. Repaired parts or replacement products will be provided by ZLINE Kitchen on an exchange basis and will be either new or refurbished to be functional equivalent to new. The consumer is responsible for shipping costs.

Who is covered:

This warranty is extended to the original purchaser for products purchased for ordinary home use in the continental USA.

This warranty is void when:

Product damage through negligence, improper installation, accident, abuse, misuse, and natural disaster, insufficient or excessive electrical supply. Abnormal mechanical or environmental conditions or any unauthorized disassembly repair, modifications or failure to follow the installation instructions or when product is used commercially or other than its intended purpose or damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than authorized agents. This limited warranty does not apply to any product on which the original identification information has been altered, obliterated or removed, has not been handled or packaged correctly, has been sold as second-hand or resold contrary to the US regulations.

What is not covered:

The natural wear of the finish, and wear due to improper maintenance, use of corrosive and abrasive cleaning products, pads and cleaning products. Chips, dents or cracks due to abuse, misuse, freight damage (not reported), or improper installation. Damage of product caused by accident, fire, flood or a natural hazard outside human control, we are not liable for and is not covered by warranty, any loss of properties or any cost associated with removing, servicing, installing or determining the source of problems with our products.

This warranty is valid in the United States. It is non-transferable and applies only to the purchaser and does not extend to subsequent owners of this product, any applicable implied warranties, including the warranty of merchantability are limited in the duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and no warranties, whether express or implied shall be applied to this product.

Documents & Files

User's Guide and Installation Manual

Frequently Asked Questions

What else do I need to order?

Everything you need to install and use your ZLINE Range Hood will come in the box.

If your kitchen ceiling is shorter than 8 feet or taller than 9 feet, you may need to purchase an additional chimney kit. Please see "What size chimney do I need?" below for more information.

What size chimney do I need?

The video below explains how to calculate the ideal chimney height for your kitchen.

Can I replace the included ducting with ridged metal ducting?

Yes, the ducting can be replaced with a ridged metal ducting that is purchased from a local hardware store.

How do I install my ZLINE range hood on my sloped or slanted ceiling?

For sloped or slanted ceilings, we recommend for customers to have the chimney piece custom cut at an angle, or there is the option of building a soffit down from the ceiling in order to mount the range hood on a flat surface.
